2013 Chiossi E Cavazutti Asso 950

2013 Chiossi E Cavazutti Asso 950

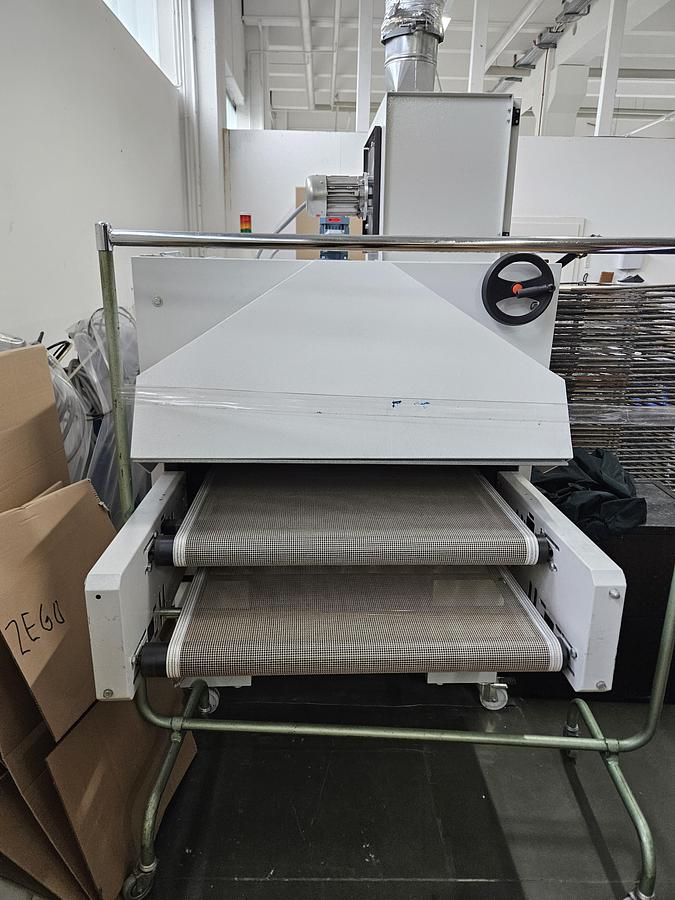

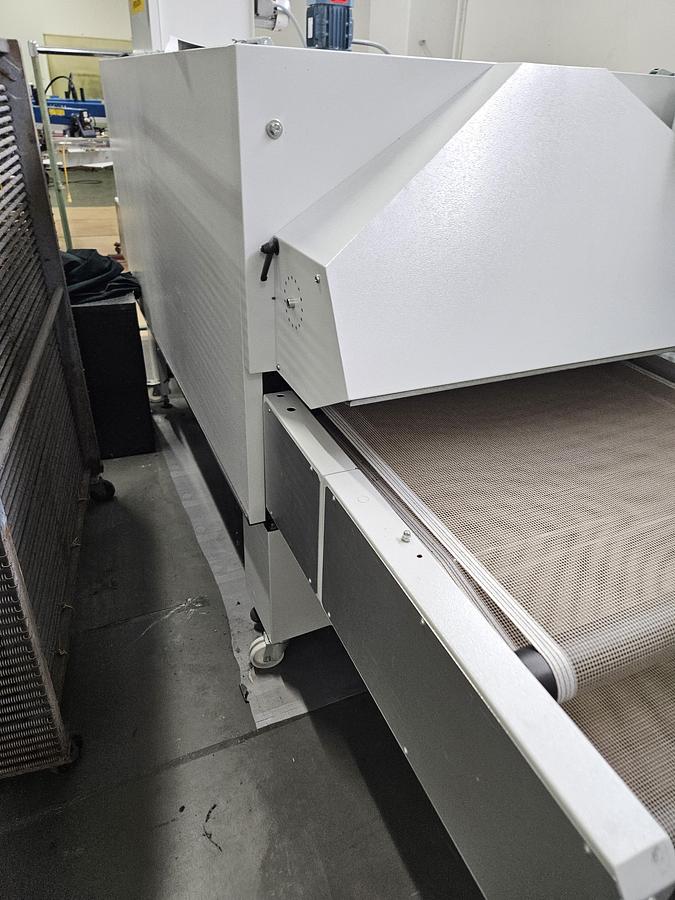

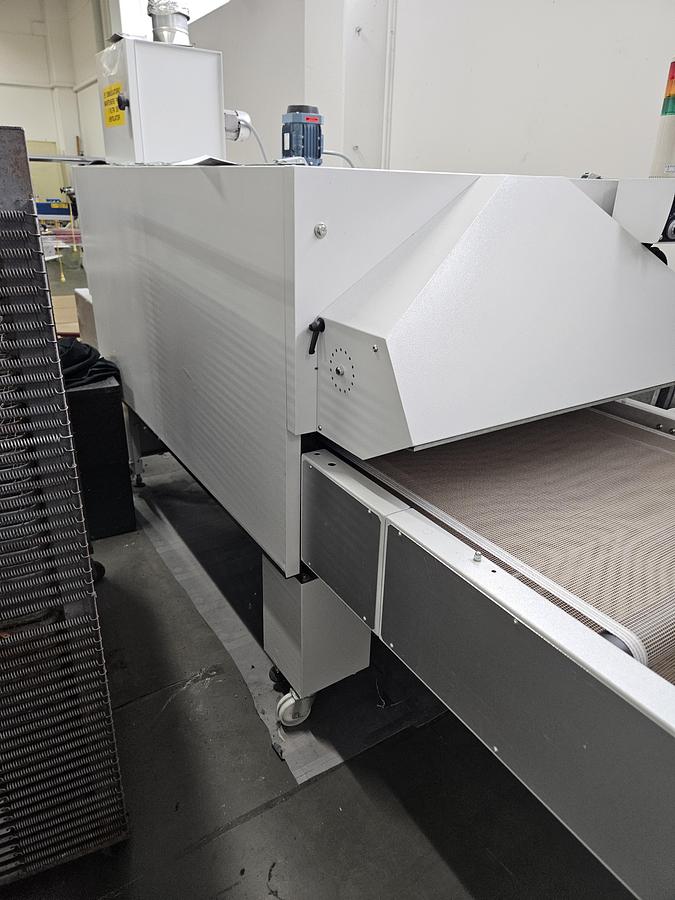

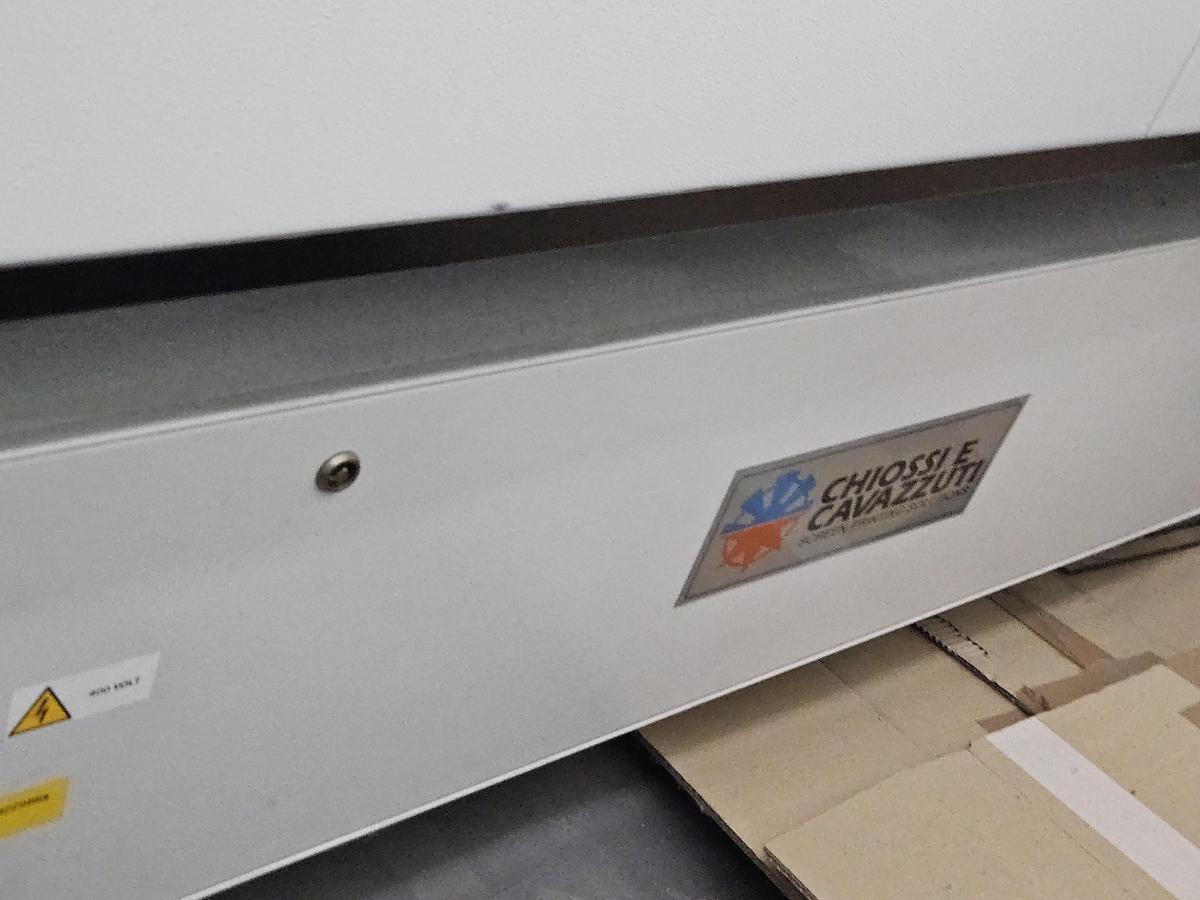

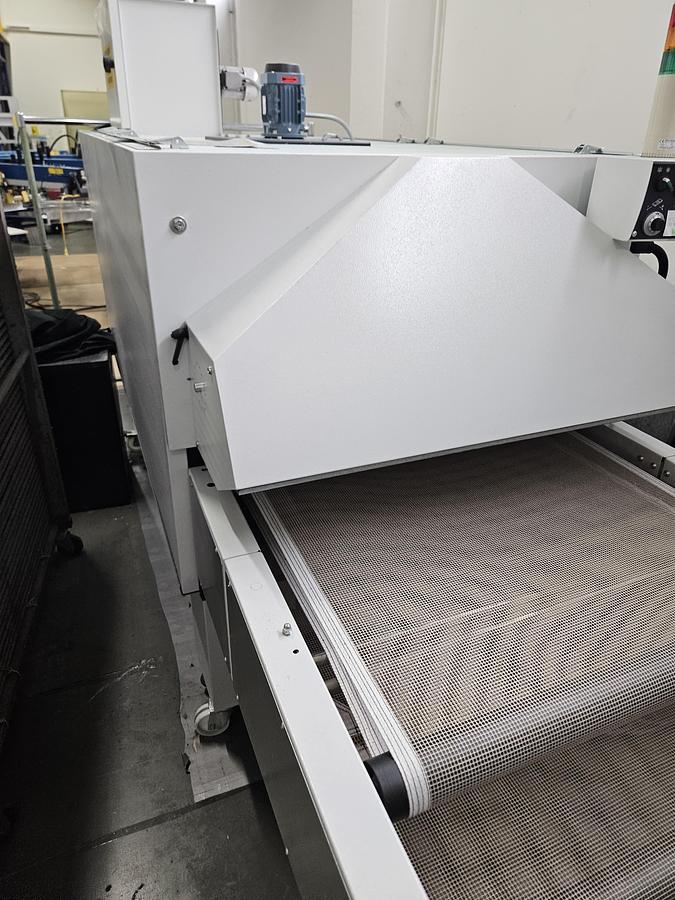

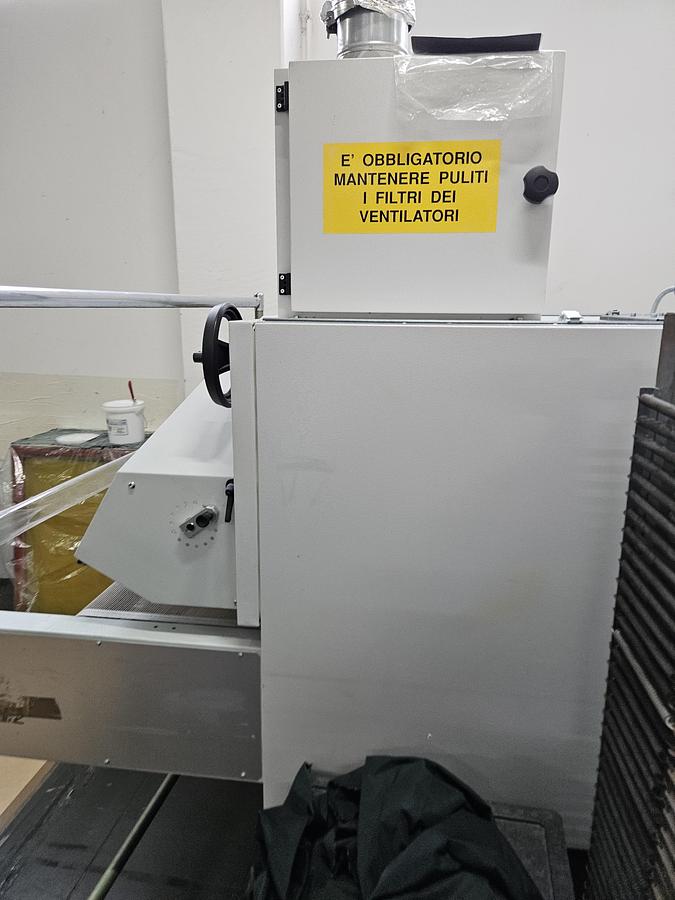

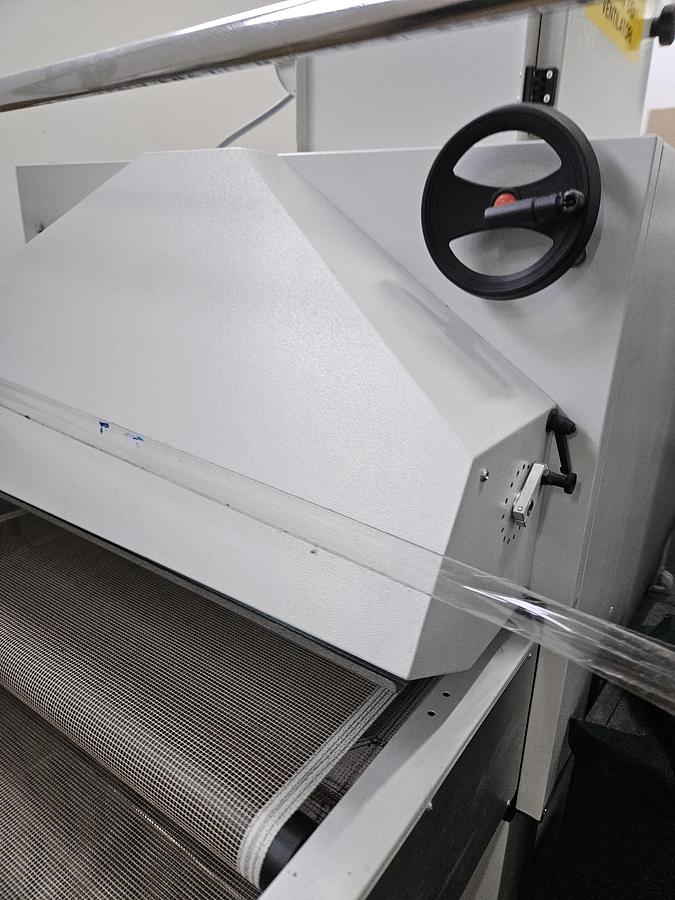

The 2013 Chiossi e Cavazzuti Asso 950 is an industrial textile dryer designed for curing water-based and digital inks on garments, particularly in direct-to-garment (DTG) printing applications. Manufactured by Chiossi e Cavazzuti, an Italian company specializing in textile finishing equipment, the Asso 950 offers efficient and precise drying capabilities.​

🔧 Key Specifications

• Drying Area: 2000 × 950 mm
• Power Supply: 400V 3-phase, 14 kW
• Maximum Temperature: 180 °C

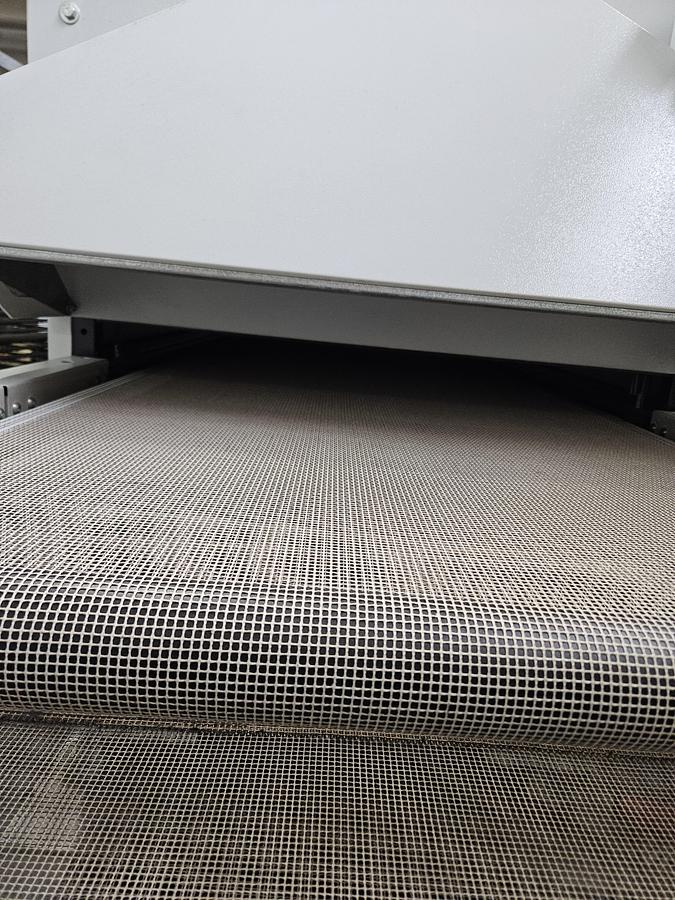

• Conveyor Width: 950 mm
• Dimensions (L × W × H): 3800 × 1250 × 2170 mm
• Weight: Approximately 650 kg

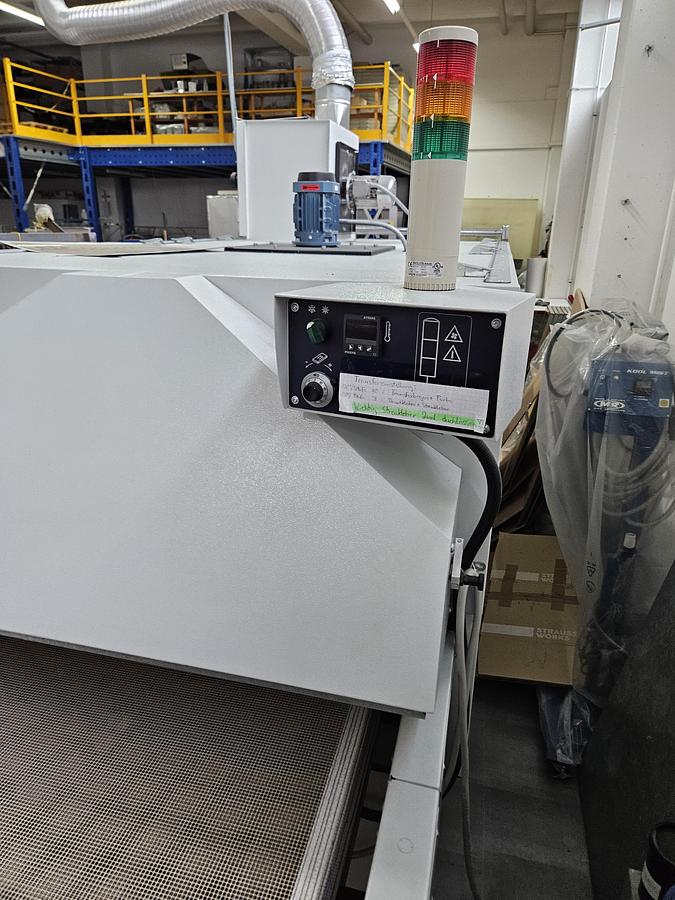

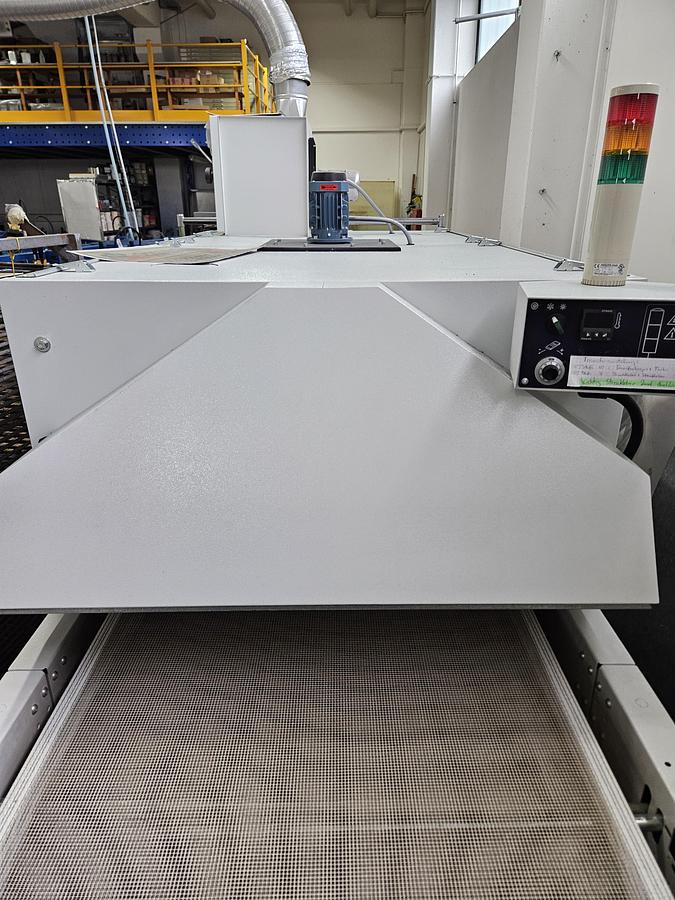

• Control Panel: Digital touchscreen with programmable time and temperature settings

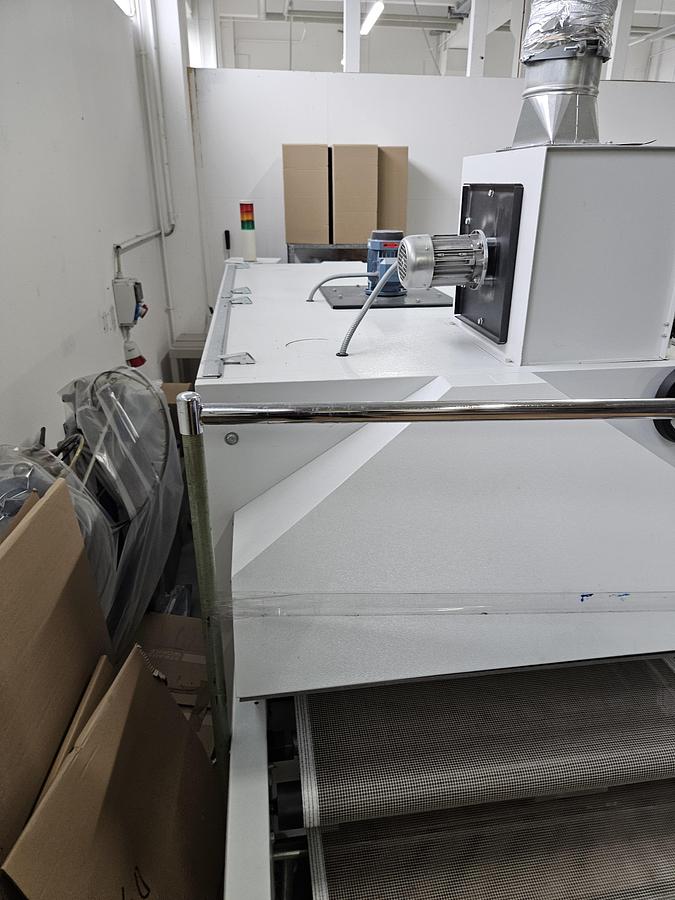

• Air Circulation: High-volume forced air with adjustable exhaust
• Noise Level: Less than 70 dB(A) ​

Performance

The Asso 950 is capable of curing up to 180 garments per hour, depending on the curing time and garment type:​

• 3-minute curing time: Approximately 180 pieces/hour
• 4-minute curing time: Approximately 140 pieces/hour
• 5-minute curing time: Approximately 110 pieces/hour
• 6-minute curing time: Approximately 90 pieces/hour ​

✅ Features

• Uniform Heat Distribution: Ensures consistent curing across the entire drying area.
• Energy Efficiency: Mineral-wool insulation reduces heat loss and power consumption.
• Safety Measures: Equipped with circuit breakers, thermostats, and a detailed alarm history for enhanced safety and maintenance.

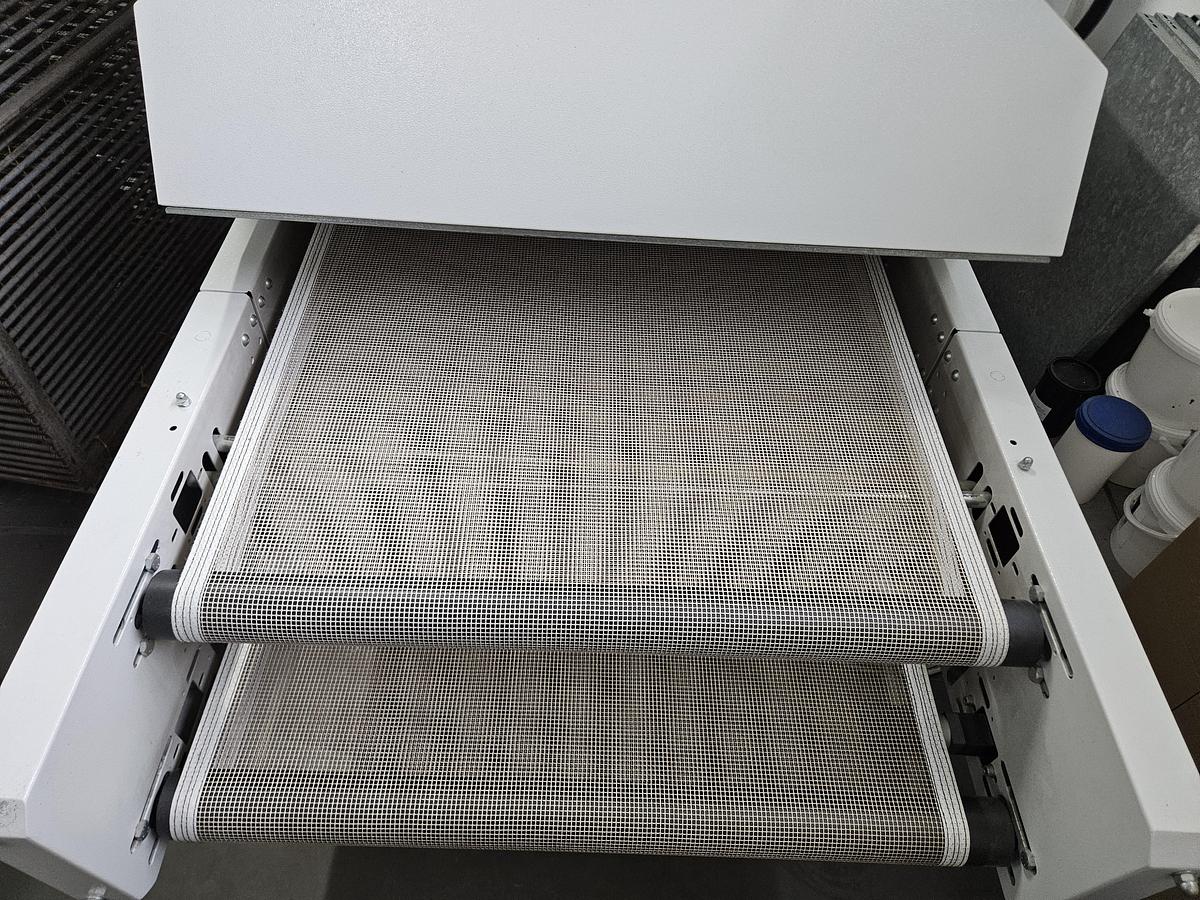

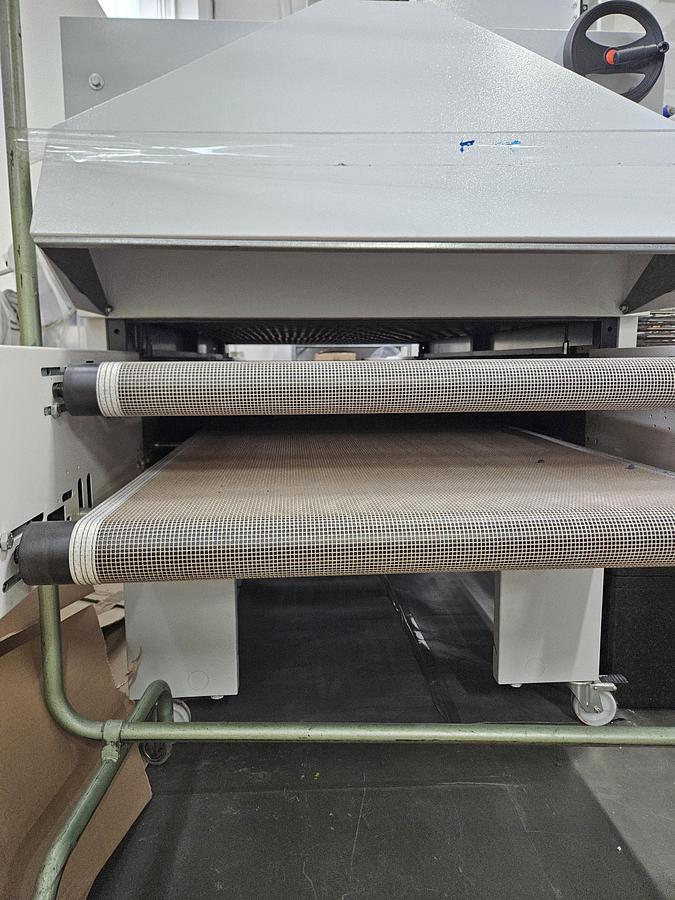

• Dual-Belt Conveyor Option: Allows simultaneous operation with two independent curing times, enhancing productivity.
• Optional Cooling Hood: Protects both the operator and delicate products from high temperatures after the drying process. ​
