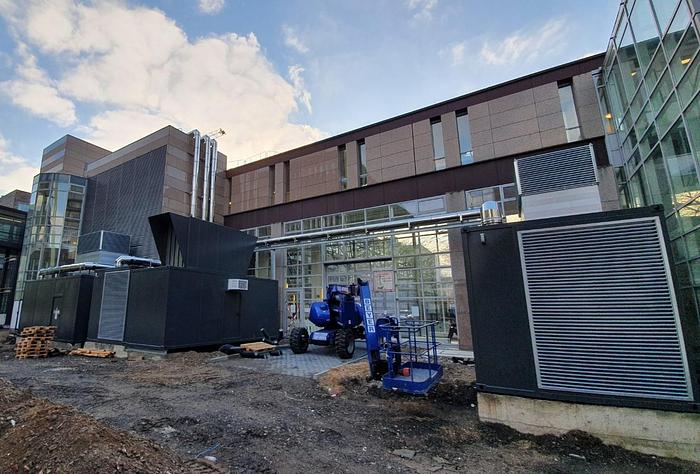

2019 - Complete 2.4 MVA Emergency Power System (3 x 800 kVA Generators + Central Control)

This system, with a total output of 2,400 kVA, consists of three generator containers, each delivering 800 kVA. These are automatically switched on as required by power consumption, controlled by a central HPS control unit.

Year of Manufacture: 2019

Operating Hours: 34

Technical Details :

Power Plant Output: 2.4 MVA

Aggregate Type: PE-800 CS

PRP Power Rating: 800 kVA / 640 kW

Specifications :

• Diesel Engine: Perkins (Model : 4006-23 TAG3A)
• Generator: Marelli ( Model: MJB400MA4 )
• Voltage: 400/230 V, 50 Hz
• Speed: 1,500 RPM

System Description :

Complete emergency power system:

• 3 Aggregate Containers including:
• Control system
• HPS control
• Generator switch
• Exhaust silencer
• 1,000 l fuel tank
• 1 GHV Container:
• With HPS central control system
• Includes circuit breaker
• Provides full 2.4 MVA system output

Container Sizes & Weights:

• Aggregate Container: 7.0 × 3.0 × 3.0 m (L×W×H), ~16,000 kg
• GHV Container: 7.0 × 2.5 × 2.9 m (L×W×H), ~11,000 kg
