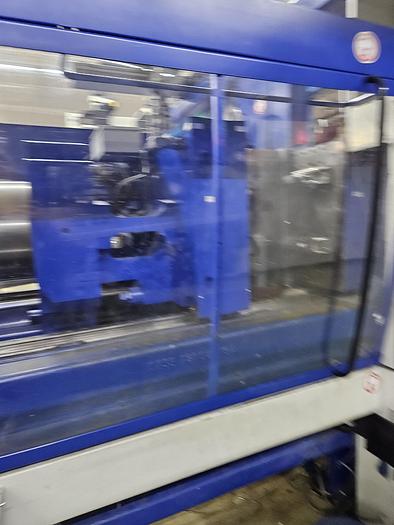

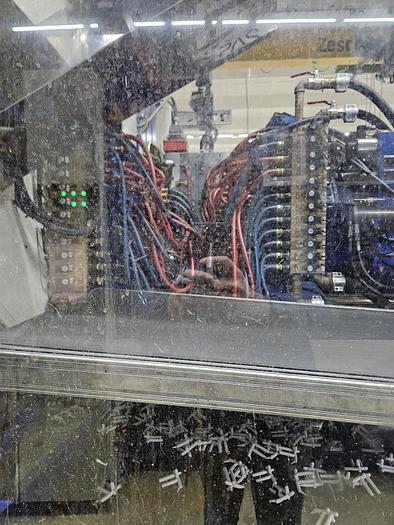

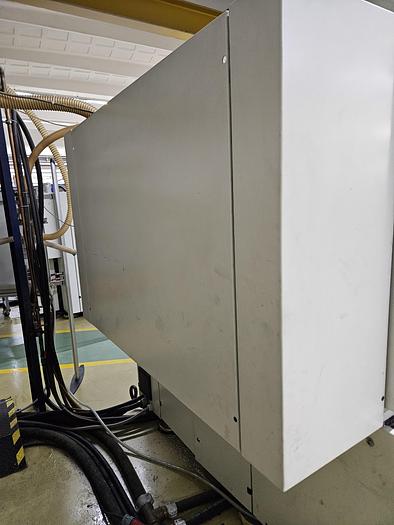

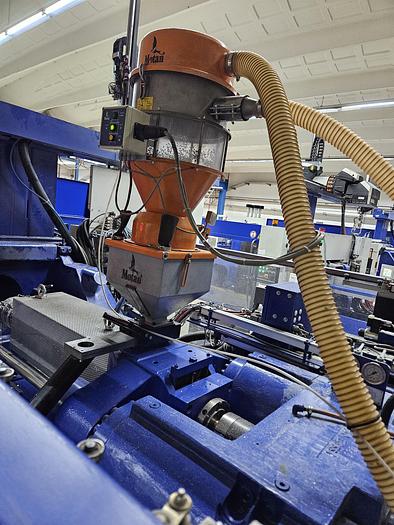

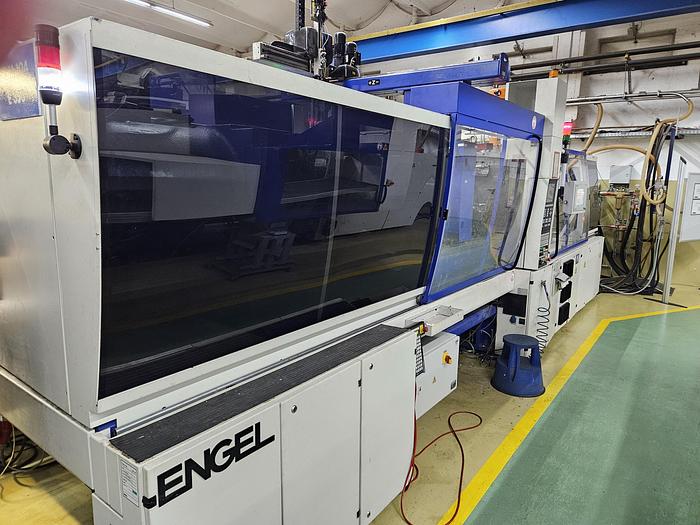

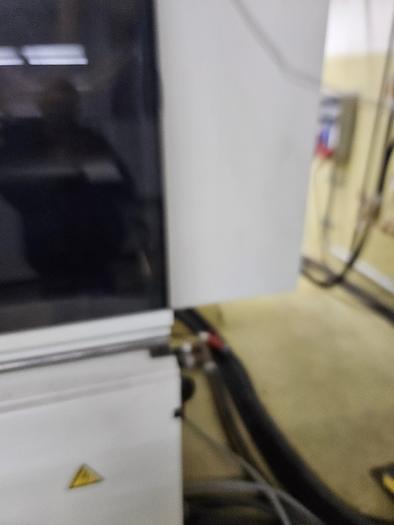

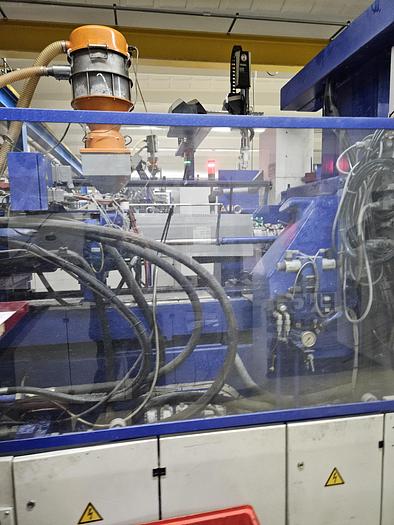

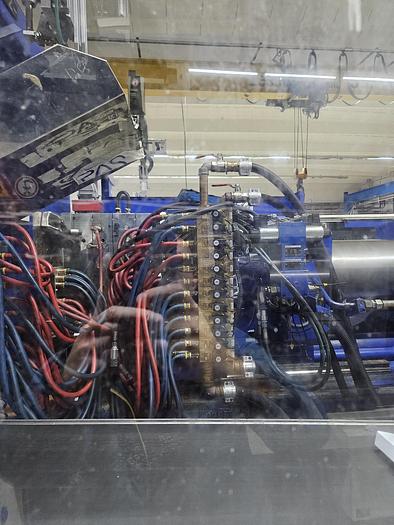

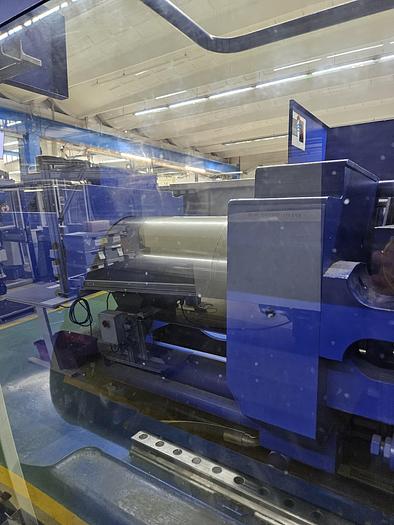

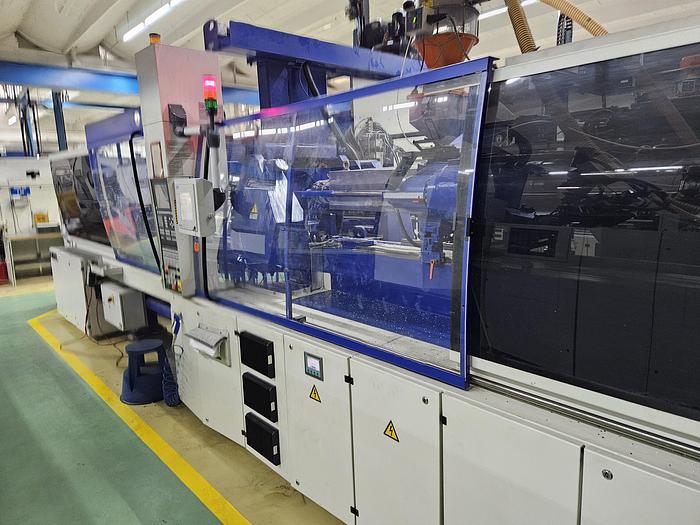

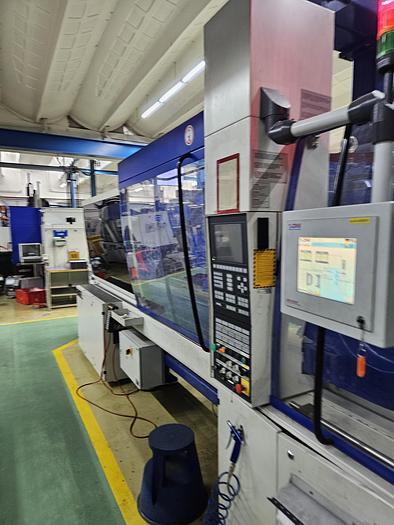

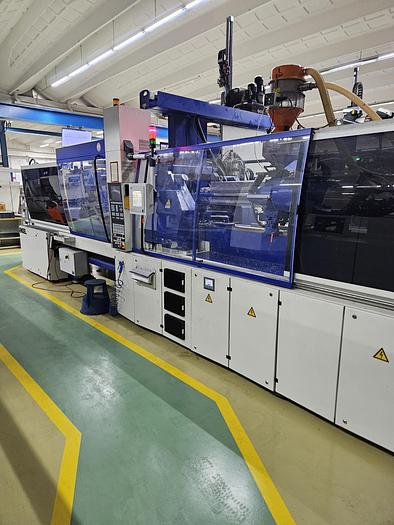

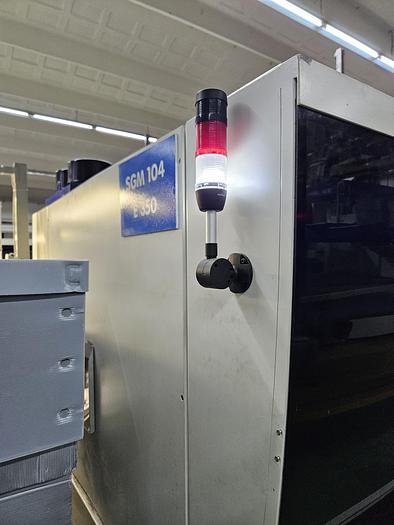

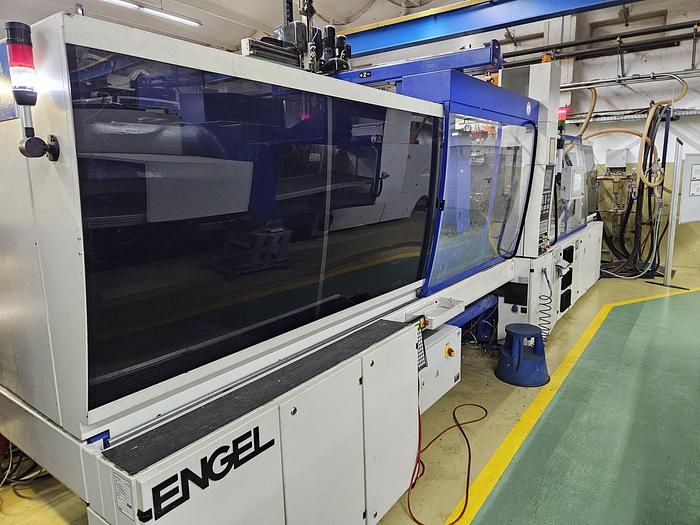

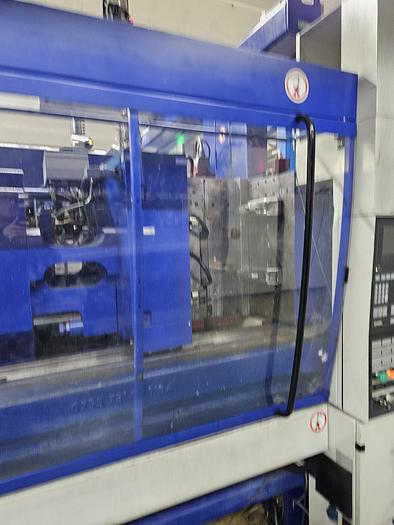

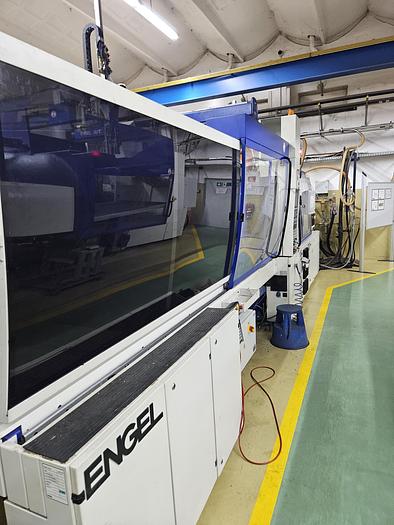

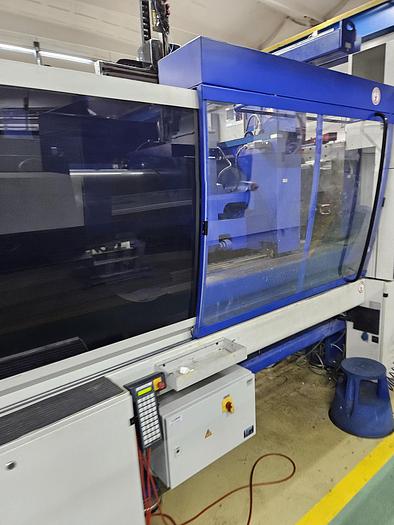

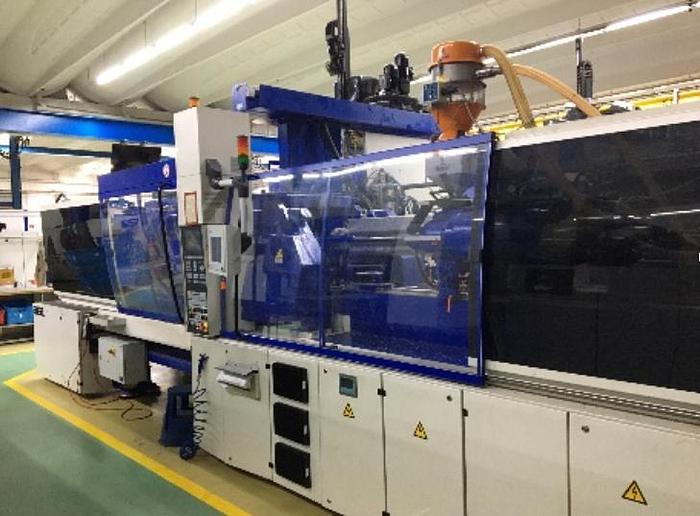

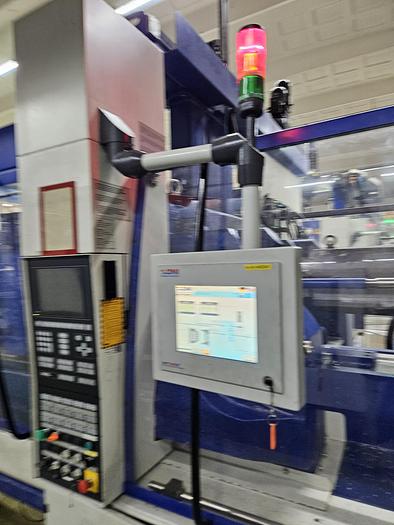

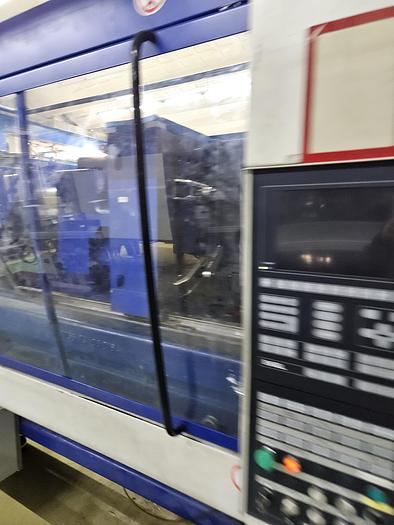

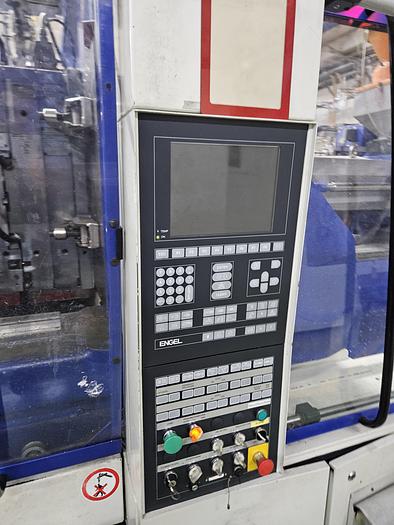

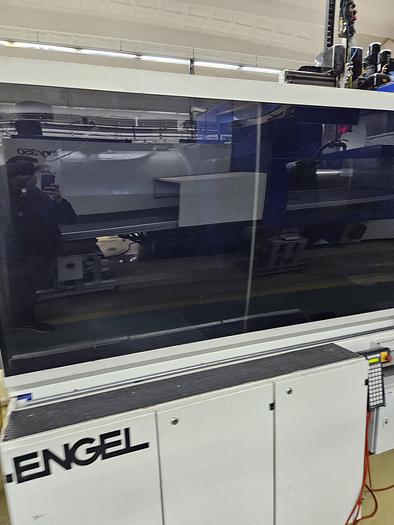

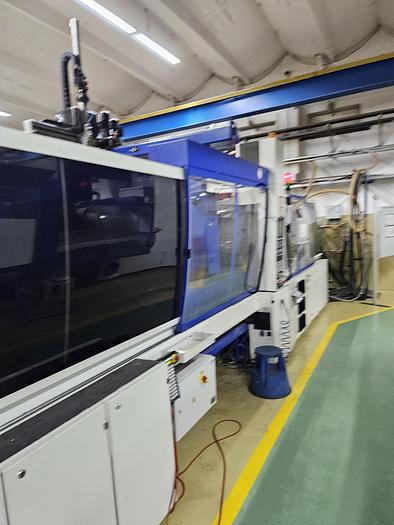

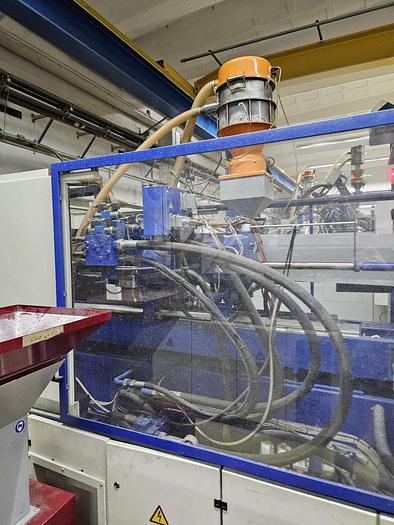

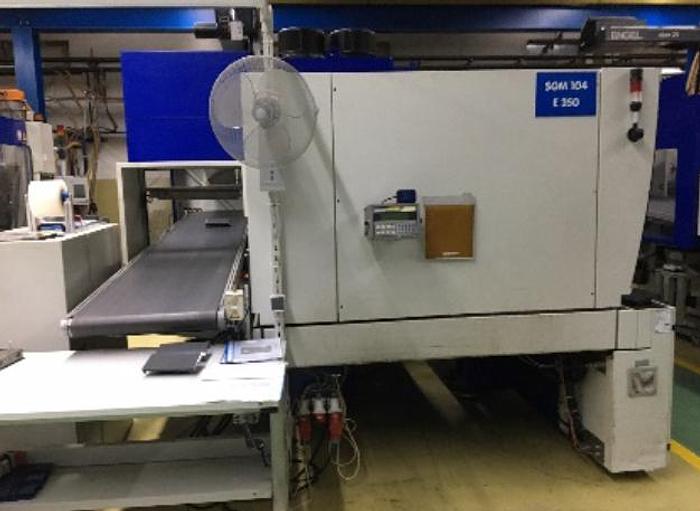

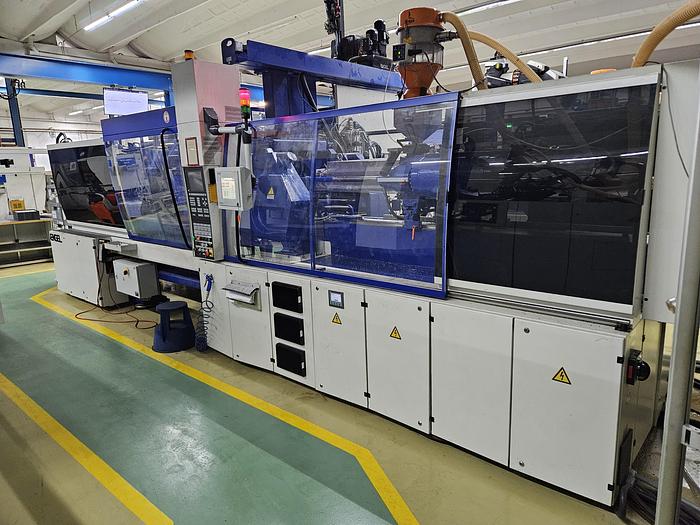

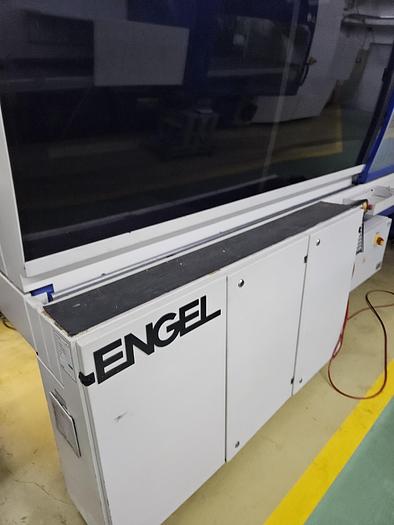

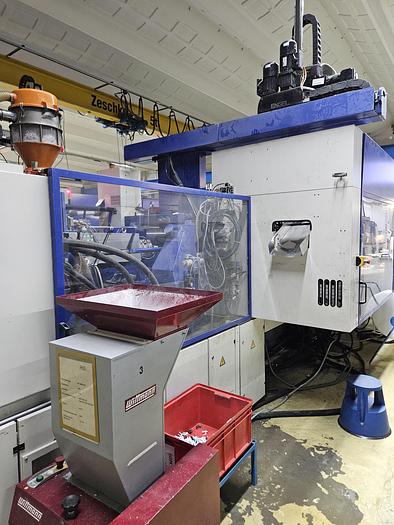

2005 ENGEL ES 1350/350 HL

No longer available

2005 ENGEL ES 1350/350 HL

Location:Berlin, Germany

Description

Engel ES 1350/350 HL


Hours - 122266

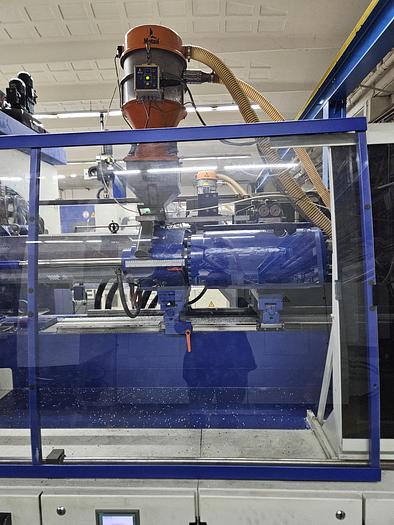

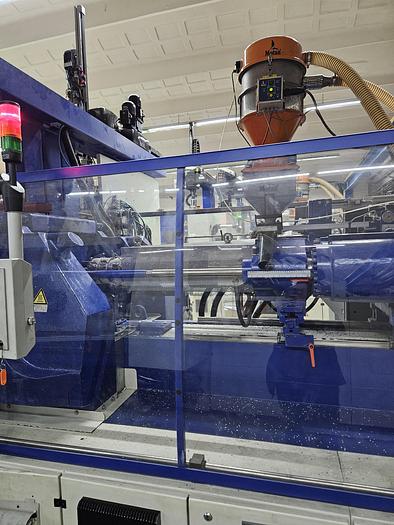

Injection unit

Screw diameter mm 55

Screw peripheral speed m/s 0.733

Maximum shot volume cm3/g 618

Injection pressure maximum hydr/spec bar 2183

Nozzle radius mm R35

Maximum barrel temperature °C 350

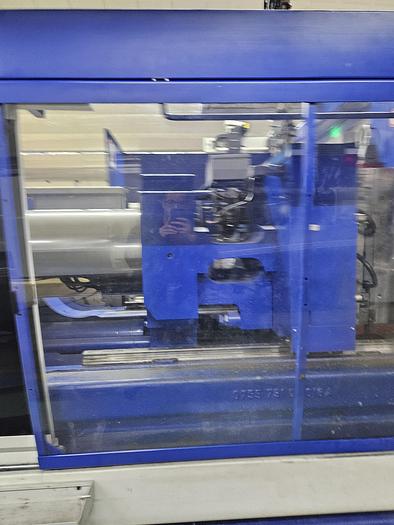

Clamping unit

Clamping force kN 3500

Maximum opening stroke (distance between the platens) mm 1305

Minimum installation height mm 350

Horizontal tie bar spacing mm not applicable

Distance between tie bars vertical mm not applicable

Centering ring Diameter nozzle side mm 160

Centering ring Diameter ejector side mm 160


Ejector

Ejector available Yes/No Yes

Ejector stroke Maximum mm 250

Core pulls

Core pulls AS pcs. 2

Core pulls DS pcs. 0

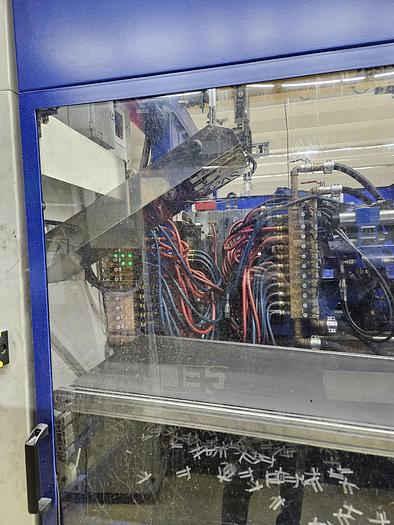

Air valves

Pneum. Valve gate nozzles - 4

Cumsa - No

Air valves - 1

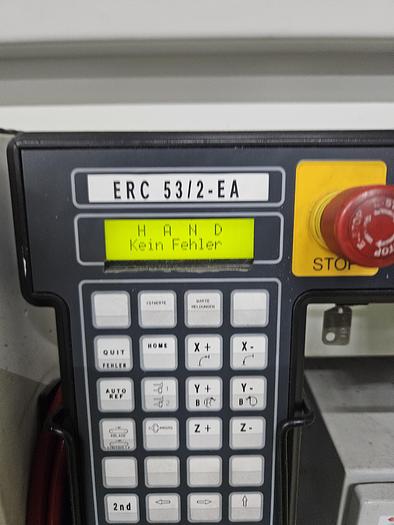

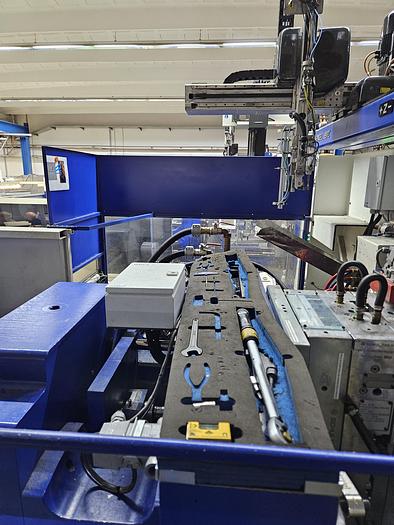

Robot-Linear Engel

A-axis - No

B-axis - Yes

C-axis - Yes


5- /6-axis Yes/No No


Machine data


Year of manufacture - 2005


Peripherals

Cobot Yes/No No

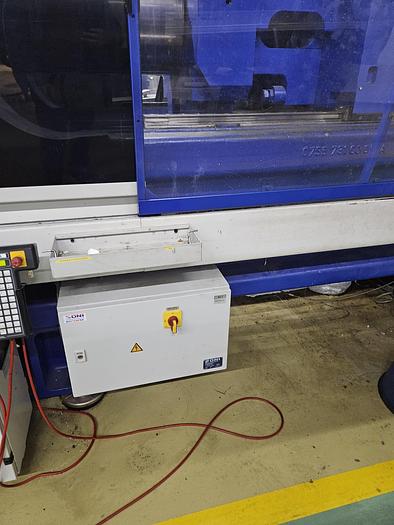

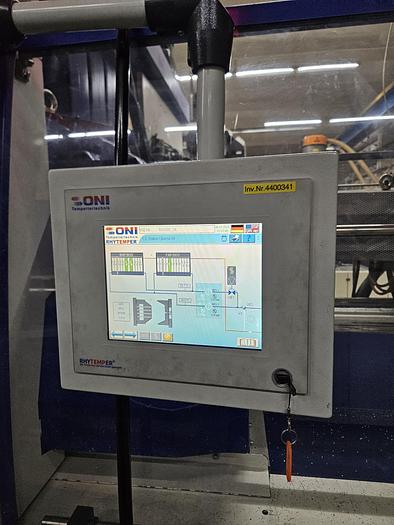

Oni device Yes/No Yes

Conveyor belt Yes/No Yes

Sprue conveyor Yes/No No

Quick coupling Core pulls Yes/No No

Quick coupling temperature control Yes/No Yes


Find more here - https://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerENGEL
ModelES 1350/350 HL
Year2005
ConditionUsed
Stock Number2163
