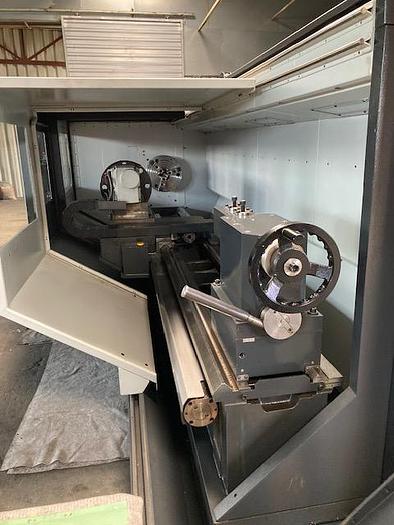

PINACHO SH 400x3000

Technical Description – Base Machine

Control System:

• Numerical Control: SIEMENS 828D with SHOP TURN

Working Area:

• Center Height: 400 mm
• Max. Swing Diameter: 800 mm
• Max. Machining Diameter over Slide: 510 mm
• Distance Between Centers: 3000 mm

Spindle Unit:

• Spindle Bore: 155 mm
• Spindle Nose (Front and Rear): DIN 55026 A2-11
• Spindle Bearing Inner Diameter: 190 mm
• Speed Range I: 0 – 288 U/min
• Speed Range II: 288 – 1,000 U/min
• Max. Torque (S1): 1527 Nm
• Main Spindle Motor Power (S1/S6): 17 / 21 kW

Axes and Feeds:

• Width of Guides in Z-axis: 425 mm
• Width of Longitudinal Slide in Z-axis: 400 mm
• Z-axis Travel: 3000 mm
• Height of Flat Guide from Ground: 805 mm
• X-axis Travel: 400 mm
• Rapid Traverse in X & Z Axes: 7.5 & 10 m/min

Automatic Turret:

• Brand: Duplomatic BSV N-200
• Number of Tool Positions: 8
• Tool Holders: VDI 40

Tailstock:

• Quill Diameter: 106 mm
• Quill Travel: 215 mm (manual)

Weights and Capacity

• Max. Workpiece Weight Between Centers: 2000 kg
• Max. Workpiece Weight with Steady Rests – 400 mm: 2500 kg
• Max. Workpiece Weight with Steady Rests – 800 mm: 3000 kg
• Max. Workpiece Weight (with Center of Gravity 250 mm in Front of Spindle Nose, including Chuck): 400 kg
• Machine Weight (with 3000 mm Center Distance): approx. 7,100 kg

Here is the extracted information for the Numerical Control (CNC) section of the machine listing:

Numerical Control (CNC)

SIEMENS 828D with the following features:

• 10.5” TFT Color Flat Screen
• Full Alphanumeric Keyboard
• Parts Program Memory: 1.5 MB
• Supports up to 5 Axes + 2 Spindles (8 inputs)
• DIN/ISO Programming
• SIEMENS Shop Turn Dialog Programming
• Machine Diagnostics
• Main Time Parallel Data Transfer
• Data Interfaces: RS 232C, USB & Ethernet
• Swiveling Control Panel
