2016 Hymmen CTK 2200

CTK 2200 Kaschieranlage:

• Type: CTK 2200
• Nominal Width: 2,200 mm
• Product Width: 2,200 mm
• Working Height: 1,220 mm ± 50 mm
• Processing Side: One-sided from above
• Control Side: Right
• Fixed Edge of Machine: Right
• Machine Speed: 10 – 30 m/min
• Max Production Speed: 25 m/min
• Passage Height: 80 mm
• Dimensions:
• Total Width: 3,000 mm
• Installation Length: 11,000 mm
• Working Width: Max 2,150 mm
• Height: 5,700 mm
• Weight: Approximately 9,500 kg
• Load Capacity: 80 kg
• Maximum Cycle Speed: 10 cycles/min
• Power Supply: 400 V / 50 Hz, 3 phases, and control voltage 230 V / 50 Hz + 24 V/DC​

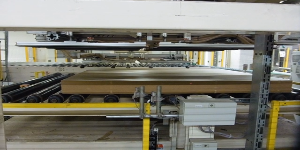

In the event that the buyer wishes to laminate the panels on both sides, we can also offer a suitable stacking turner. Seen on the last picutre
