2013 Pressta Eisele Profilma 600R

2013 Pressta Eisele Profilma 600R

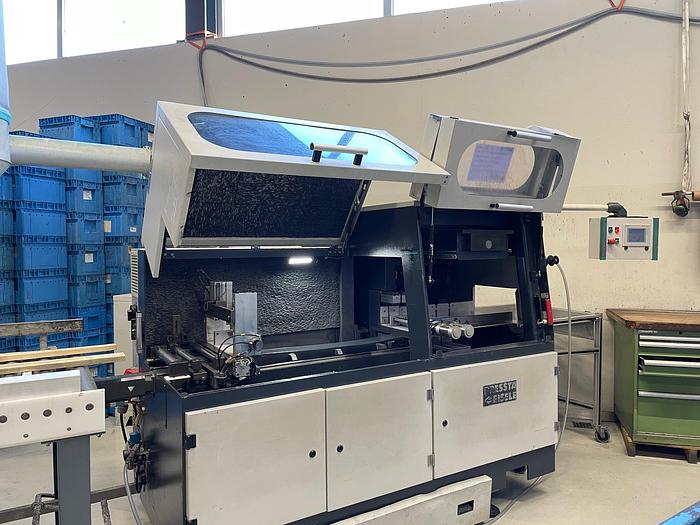

Fully automatic circular saw

Machine :

fully automatic operation

Drive 9.2 KW, S 6, 400 V, 50 Hz, 2850 rpm-1 – reinforced drive 18.5KW-S6 60%

Stepless speed control, speed range 2000-3500rpm-1

Use of saw blades Ø 600 mm, saw blade flange 160mm diameter with 2 driving pins diameter 10 / Tk=63

Cutting gap extension

Large cutting area

Max. cutting height up to 210 mm

Max. cutting width: 350 mm

Siemens controller S7-300

Clamping pressure reduction horizontally and vertically with 6 pressure regulators

Continuously adjustable saw blade feed via ball screw drive

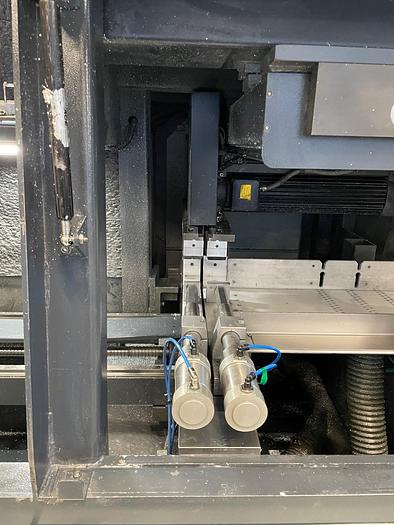

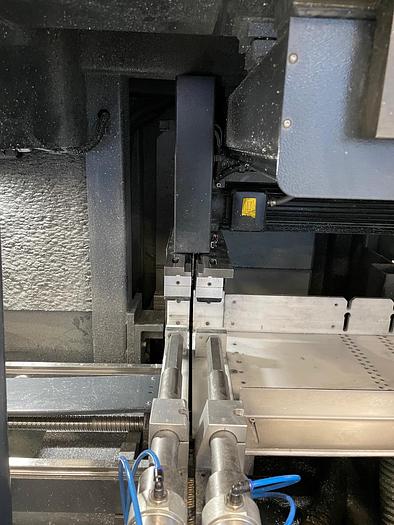

Vertical and horizontal clamping device, vertical clamping device on the supply and discharge side, can be used up to profile heights max. 165mm

Cutting gap extension on both sides of the saw blade, on the feed side via the spindle, on the discharge side pneumatically by pushing off the table top

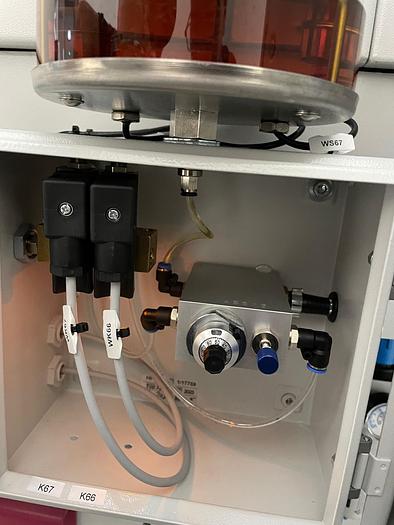

Minimum quantity lubrication with level monitoring and automatic shutdown – 1 litre

Electronic material feed unit 2-1000mm feed length with ball screw and servo motor

Cutting lengths from 10mm

Remaining piece from 90mm, profile dependent

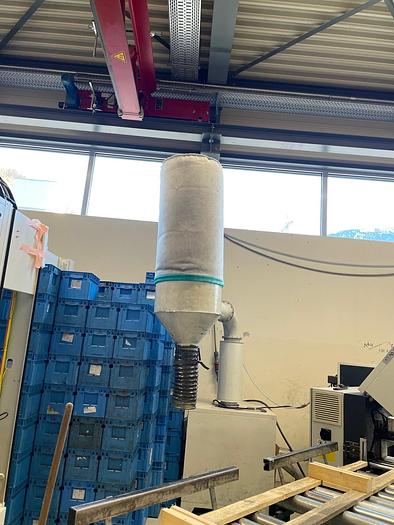

Chip extraction system 4 KW motor

Layer clamping pieces

Drag roller behind the feed carriage to rest on the profile end as additional support for the profile bar.

Clamping set horiz.Height adjustable – pressure pieces 80mm long, height adjustable for the horizontal clamps

Engine room light

Network interface CPU

Roller conveyor 6000mmm – 4 supports
