Water-steam generation plant

A complete water-steam generation plant, including all required upstream and downstream equipment and lines: water treatment (softening, osmosis system), tank system, feed water tank, high and low pressure distribution systems, exhaust gas heat exchanger.

---

System for water vapour generation with

2 x 1,304 kW 16 bar

The system for generating water vapour consists of the following components:

- Steam boiler 01

- Steam boiler 02

- Feed water tank Pure steam

- Feed water tank-steam boiler

- Pure steam generator

- High pressure distributor

- Low pressure distributor

- Hydraulic separator

- Heating manifold

- Flue gas heat exchanger

- Boiler 01

- Boiler 02

- Tank system

- Reverse osmosis A04

- Softening system

Description of individual components:

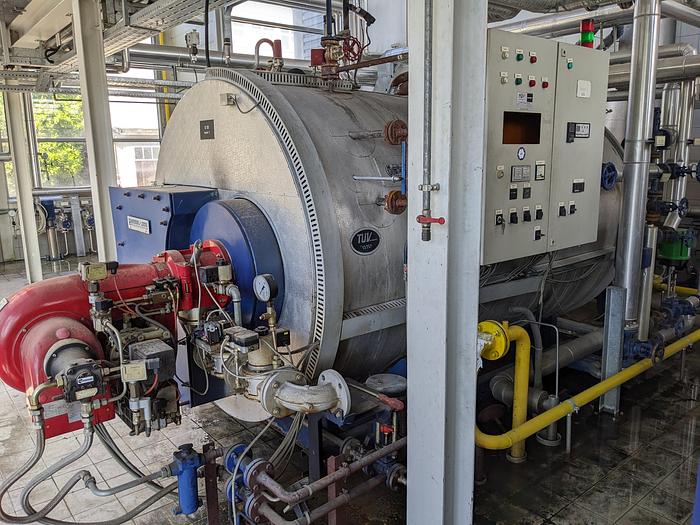

**Steam boiler 01**:

- Type: UP 2000

- Year of construction: 1993

- max. operating pressure: 16 bar

- Effective output: 1304 kW

- Manufacturer: Loos

**Steam boiler 02**:

- Type: UP 2000

- Year of construction: 1993

- max. operating pressure: 16 bar

- Effective output: 1304 kW

- Manufacturer: Loos

**Pure steam feed water tank**:

- Type: SW/NDR

- Year of construction: 1994

- Max. Pressure: 1 bar

- Temperature: 120C

- Capacity: 3000l

- Manufacturer: Eichler

**Feed water tank steam boiler**:

- Type: SW/NDR

- Year of construction: 1994

- Max. Pressure: 1 bar

- Temperature: 120C

- Capacity: 8000l

- Manufacturer: Eichler

**Pure vapour generator**:

- Type: U_-B 1317

- Year of construction: 1994

- Manufacturer: Ortner

- Tank:

 - Capacity: 2370l

 - Temperature: 220C

 - max. pressure: 14 bar

- Bundle:

 - Capacity: 180 litres

 - Temperature 220C

 - Max. Pressure: 18 bar

**Reverse osmosis A04**:

- Type: BRO-2500-N

- Year of construction: 1994

- Remark: 4-storage tank B14-B17

- Manufacturer: BWT AG

**Softener**:

- Type: BA-300-MD/MHV

- Year of construction: 1994

- Composition: two softening columns (B10 and B12); two salt tanks (B11 and B13)

- Manufacturer: BWT AG
