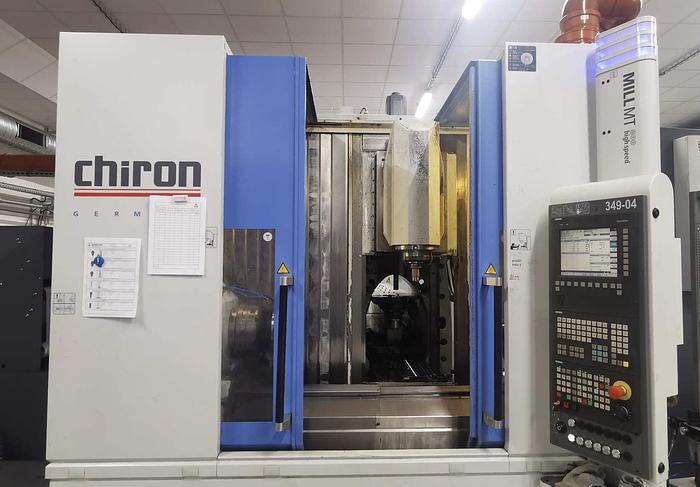

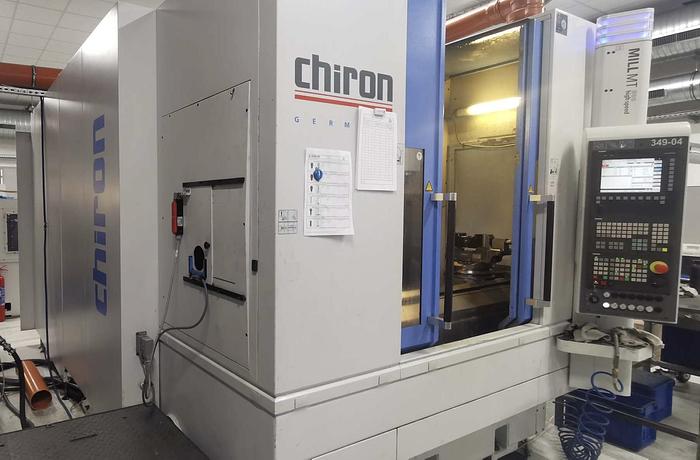

2015 Chiron Mill MT 800

2015 Chiron Mill MT 800

5-axis cnc machining center (milling/turning from bar)

Type: Mill MT 800

Manufacturer: Chiron

Year: 2015

New spindle in 5/2022

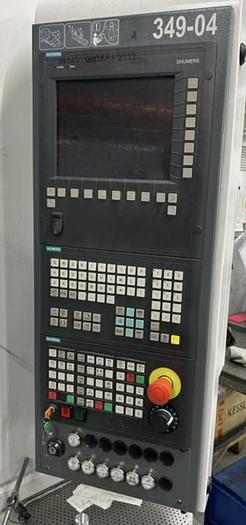

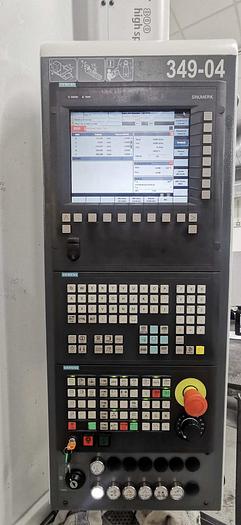

Control: Siemens Sinumerik 840 D

5 simultaneous axis 1*

X, Y, Z: 800, 500, 550 mm

Rapids (Highspeed) 60 m/min

Swivelling head CNC controlled (B axis) +/- 100° Turning spindle Kessler Milling spindle 12.000 rpm/ 140 Nm (new repaired may 2022)

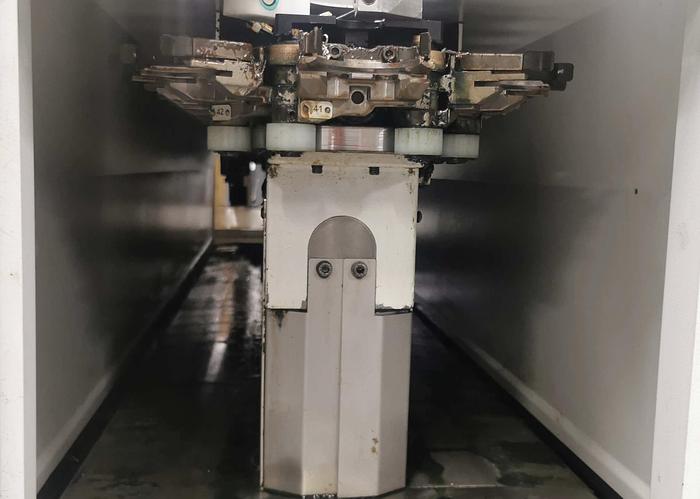

Tool changer 60 positions

Tool type HSK-A 63 DIN 69893

Tool-change time 1,5 sec

Table 800x500 mm

Max table load 600 kg

Coolant through spindle 40 bar

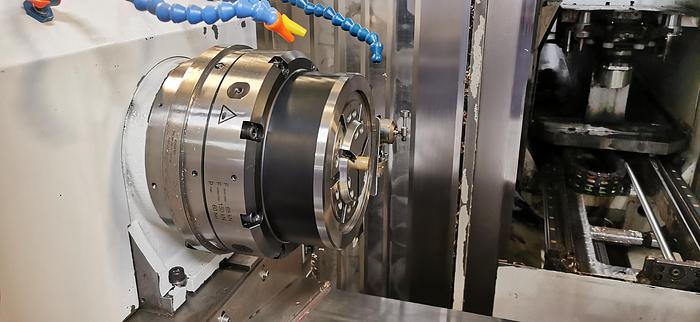

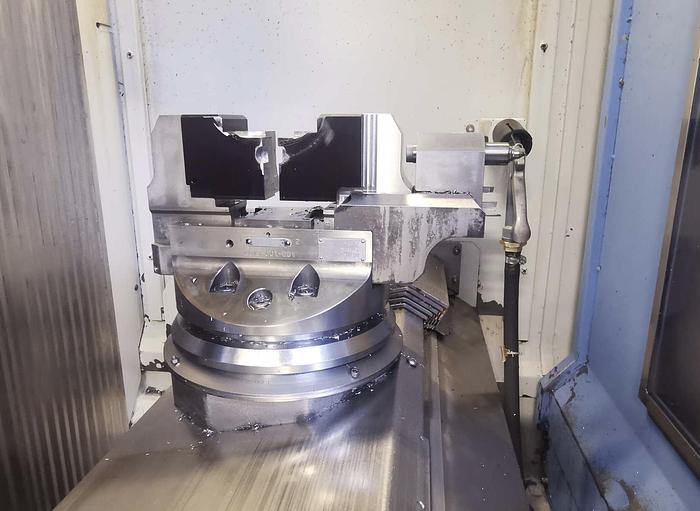

CNC controlled clamping/rotating unit for 6th face machining

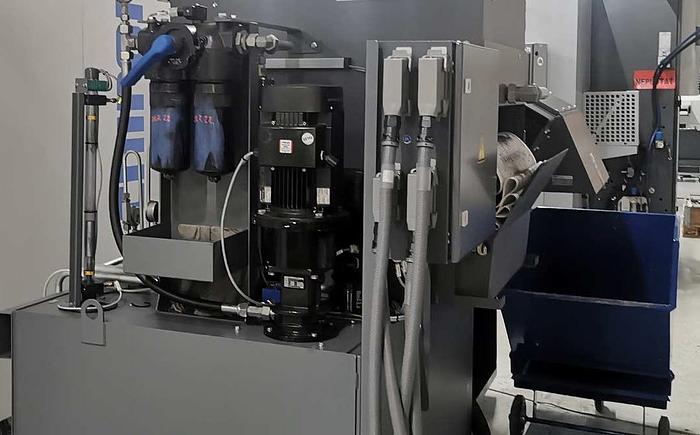

Pressurised linear encoders Swarf conveyor Renishaw-ready Y.O.M. 2015

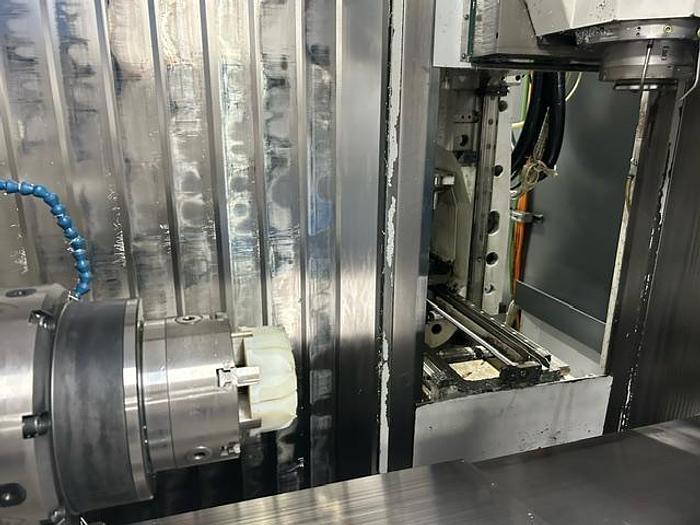

Turning package Max dia 65mm RPM: 15 .

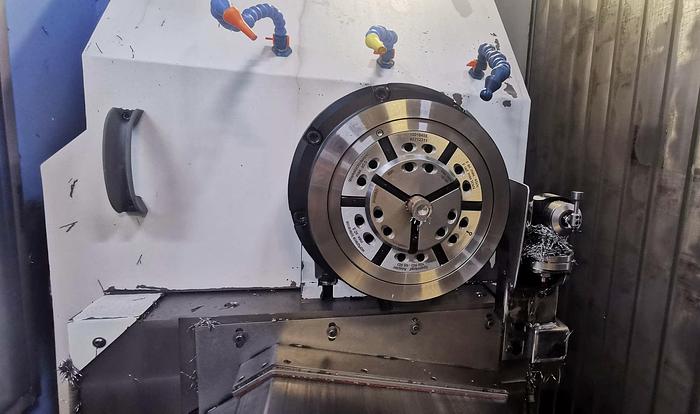

Hydraulic clamping 800 Nm.

Bar loader ILS-RBK- 10012 100

Diameters min/max 5/100 mm L= 600-1200 mm Highspeed 60m/min.

Machine in good condition, under power.
