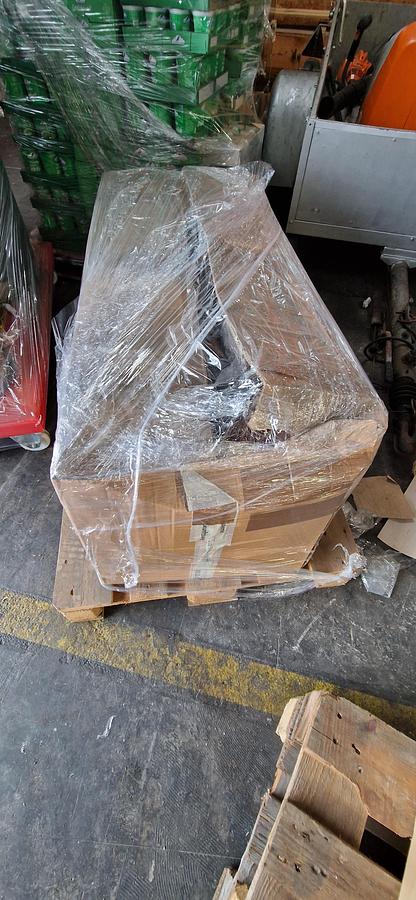

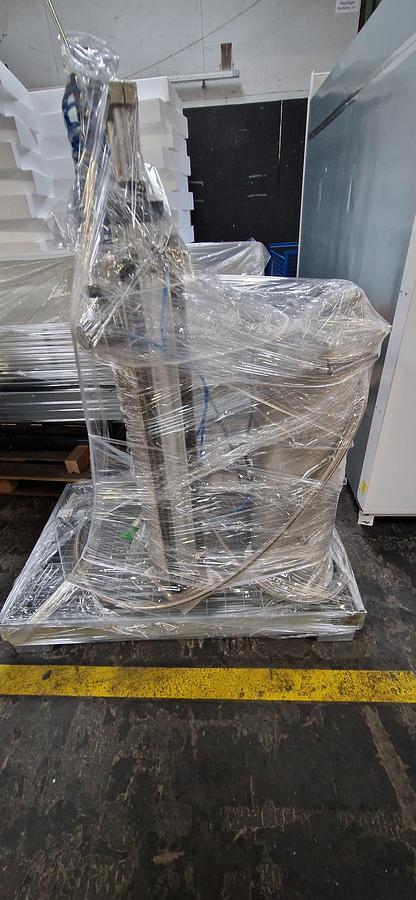

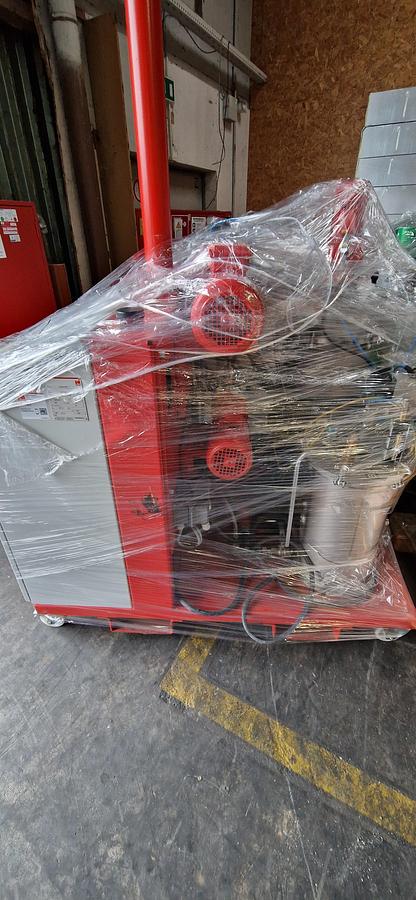

2020 DOPAG eldomix 600

2020 DOPAG eldomix 600

Gluing machine

The machine was purchased in 2020 and has never been used.

Function

Pressurised material containers are used to supply

are used for material supply. Conveying and dosing takes place via gear pumps.

metering pumps. These are driven by three-phase asynchronous motors

driven. Both gear metering pumps

are protected against overpressure as standard.

The eldomix is controlled via a dosing computer with a touchscreen

touchscreen system operation and is equipped with a

outlet

system has a static mixing system consisting of a

consisting of a 2K valve in the 100 series and a double

valve in the 600 series, in combination with a static plastic mixing

with a static plastic mixing pipe. The mixing tube

can be disposed of cost-effectively once the material has hardened.

disposed of. There is no need for time-consuming and environmentally

is no longer necessary.

Industries

Possible applications for these modern dosing systems

can be found in industries in which media are dispensed with high precision

and reproducible

must be dispensed:

▪▪ Automotive industry

▪▪ Electrical and electronics industry

▪▪ Renewable energies

▪▪ Aerospace industry

▪▪ Household appliances

▪▪ and much more.

Features and benefits

▪▪ Modular, flexible design enables a wide range of applications,

variable mixing ratio and variable

discharge quantity

▪▪ Compact tabletop version for the eldomix 100

▪▪ Simple and convenient operation

▪▪ Material discharge in batches or continuously

▪▪ Overpressure / underpressure protection

▪▪ Free of flushing agent

Features

Material discharge 2 ml to 5 l / min, depending on mixing ratio and viscosity

Mixing ratio 100 : 100 to 100 : 5, volumetric

Working pressure 100 bar max.

Mixing system Static or static-dynamic

▪▪ 2-component valve

▪▪ Plastic mixing tube

Dynamic mixing system

Material supply Material pressure container 12 to 90 litres, larger on request

and / or container pumps

Viscosity range 50 to 80,000 mPa s, with material pressure tank

up to 150,000 mPa s, with container pumps

Material properties Unfilled, filled, abrasive

Operating voltage 400/230 VAC 3/N/PE / 50/60 Hz

Compressed air supply 6 bar max.

Dimensions, W x H x D from 1,200 x 1,150 x 1,400 mm

Weight from 600 kg

STANDARD

Rollable chassis

12 litre stainless steel material pressure tank

Gear metering pumps with overpressure protection

Three-phase asynchronous motors

Static mixing system

  - 2K valve with separate material feed

  - Static plastic mixing tube

Dosing computer with real-time multitasking operating system (storage of up to 64 dosing programmes, 32 of which can be selected externally)

9" colour touch display for system operation

OPTIONAL

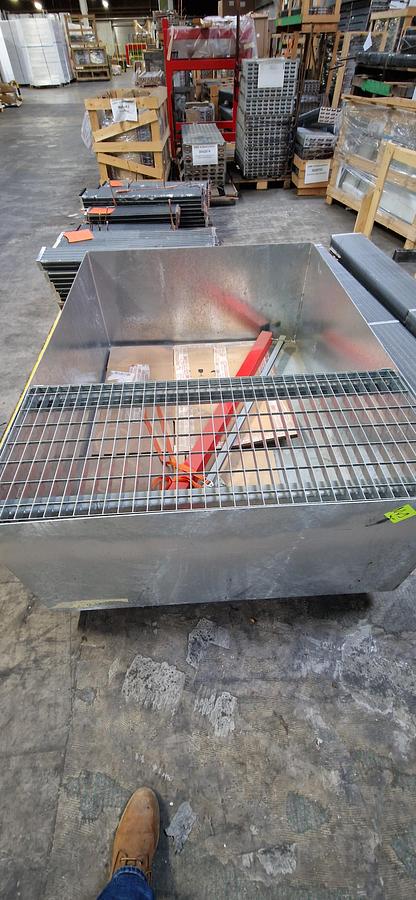

Larger rollable chassis, also with integrated

drip tray

Modular design

Mast and boom with balancer

Pressurised material container with

  - level control

  - Agitator

  - Automatic refilling

  - Connection for vacuum pump

  - Automatic degassing, also via thin-layer bell jar

Material supply via submersible or container pumps

Increased wear protection for the gear pumps

Drive via servomotors

Control or regulation of mixing ratio and discharge quantity via volume measuring cells

Static-dynamic mixing system

With mixing spiral monitoring

Dynamic mixing system

Start/stop signal via foot switch or handle

Manual or automatic cycle

Regeneration position

Heating or temperature control
