2012 Wissner Witec 32 Economic

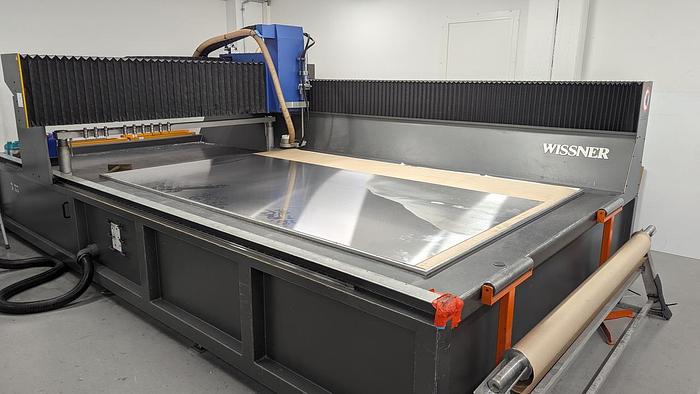

Wissner CNC Milling Machine

Typ Witec 32 Economic

Vintage 2012

Machine size: 5400 x 2970 x 2150 mm

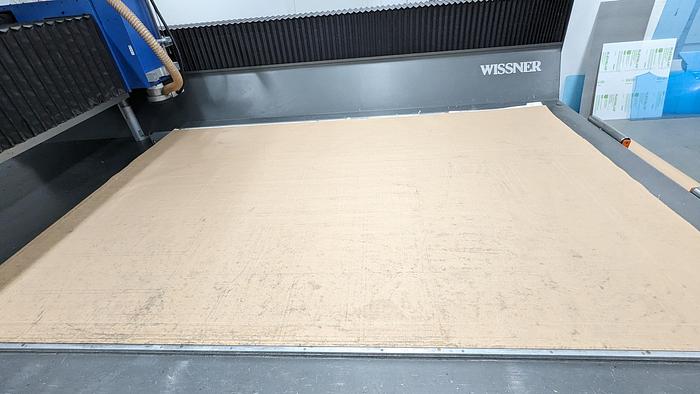

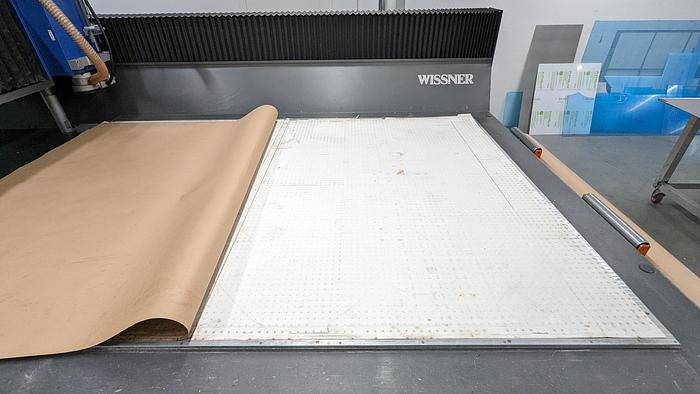

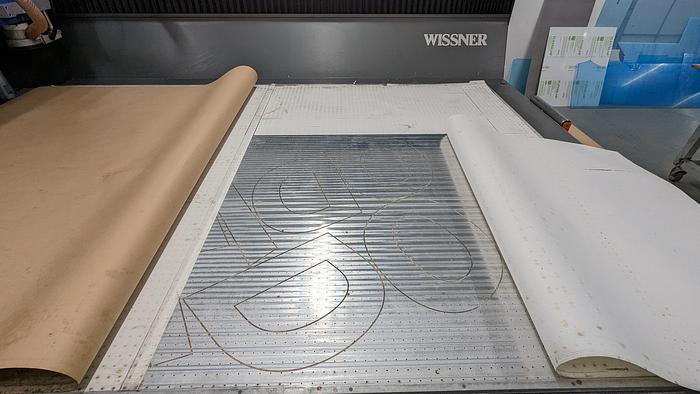

Work surface: 3050 x 2050 mm

Weight: 6000 kg

Additional equipment:

Industrial PC: 1000 x 850 x 1500 mm

Suction cup: 1060 x 700 x 1350 mm

Cooling device: 550 x 750 x 450 mm

Vacuum pump: 1100 x 600 x 750 mm

Dismantling and removal by buyer

*Weissner CNC equipment and accessories

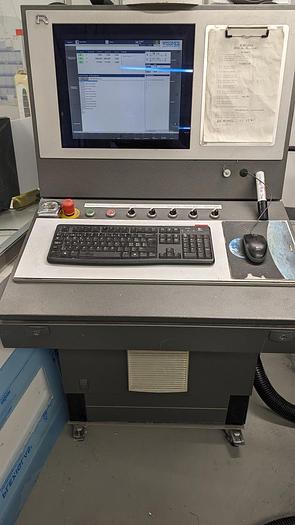

- Industrial PC with 17" flat screen, complete in housing to control the CNC

- High-frequency spindle +1 as reserve (2 spindles in total)

- Tool changer with 10 places including collision protection

- Tool length scanning (+1 reserve)

- Retractable stop pins: 6 for the X-axis and one each for the Y-axis (automatic)

- Minimum lubrication system, controlled

- Suction device

- Switchable to hoover air

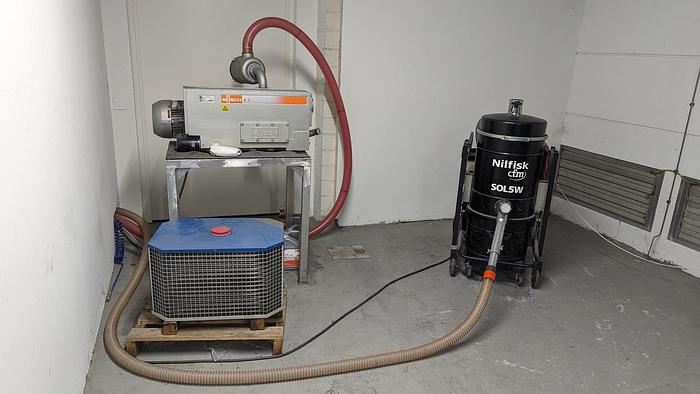

- Additional equipment: Vacuum pump, hoover air pump, cooling unit and industrial vacuum cleaner

- 10 tool holders with various collets from 3-12

- Clamping tools

We cannot pass on our Alphacam software as this can still be used for the new device.

We can hand over the postprocessor (file specially created for Grafitec) for use with the machine (new Alphacam software required).
