2020 Boschert G-Bend Plus 4290

2020 Boschert G-Bend Plus 4290

Contact us for price

Location:Munich, Germany

Description

2020 Boschert G-Bend Plus 4290

Press brake

press force: 290 tons

Machine still assembled and fully functional

Machine was delivered in February 2020 and has only run a little since then.

The operating hours are: 545 operating hours

Dismantling, collection, transport, reconstruction and commissioning by the buyer.


Machine description:

The machine is a robust welded construction.

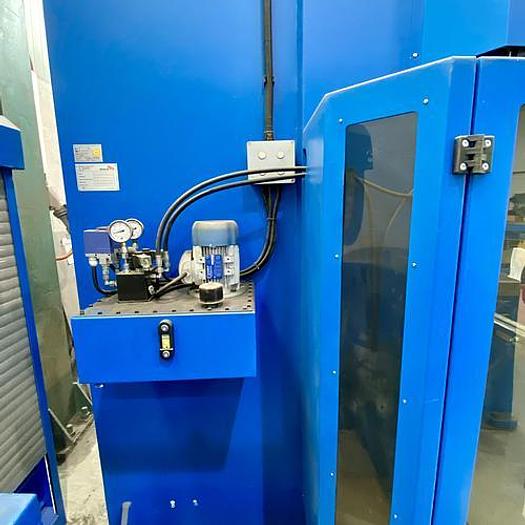

The hydraulic pistons are made of high-quality steel. The surfaces are hard chrome-plated for wear protection.

The position of the cylinders is controlled by two proportional valves. The valves are mounted directly on the respective cylinder.


Two independent position measuring systems recognise the current cylinder position and transmit this to the control system. Any bending of the machine is recognised and compensated for by readjusting the cylinders.

The rigidity of the machine is increased by side-welded cheeks.

A double roller guide ensures precise and torsion-free movement of the folding beam and allows different in feeds of Y1 and Y2.

The bending beam is also guided over guides made of composite material.

The machine's stop system is equipped with two stop fingers.

The machine complies with the CE standard.

X-stop

The stop is equipped with two laterally adjustable stop fingers. Two linear guides ensure precise bearings and highly accurate positioning of the stop.

It is driven by means of two driven ball screws.

R - A c h s e (optional)


The automatic height positioning of the connections takes place via a

double rack and pinion drive. Both stops are driven simultaneously via a cardan shaft.

driven simultaneously.


ROL 1 clamping system (optional)

ROL 1 is an innovative solution for tool clamping to increase the productivity of a press brake.

press brake. Long roasting times are avoided as the tools do not!

need to be inserted from the side. Thanks to the special design of the

the tools can be positioned directly in the desired position.

be positioned directly at the desired point.


ROL 1 KDS clamping system (optional)

ROL 1 KOS is the further development of the ROL 1 system. Thanks to an additional

clamping plate on the back of the tool holder, the tools can also be rotated.

can also be rotated. This makes sense for cropped tools where you need to align the cropping in the opposite direction.

the cropping in the opposite direction

WILA hydraulic clamping system (optional)

For the highest level of bending precision, change speed, safety, durability and flexibility.

and flexibility.


Fissler AKAS Ili light barrier

The AKAS Ili system unit is a special protective device for press brakes and press brakes.

press brakes. It consists of a transmitter and receiver.

The AKAS Ili transmitter generates two modulated, visible red light laser beams.

The AKAS receiver consists of three receiver elements and evaluation electronics.

The transmitter and receiver are permanently connected to the upper beam of the machine and form a LASER optical safety edge in front of the upper blade.

The AKAS forward-running LASER optical safety edge keeps the hands free for

the handling of the sheet metal parts with simultaneous shouldering of the links during the

the entire bending process.


The AKAS Ili transmitters and receivers can be quickly and easily adjusted to other tool lengths

automatically adjustable.

Depending on the maximum overtravel of the press brake, AKAS Ili can be programmed in such a way that optimum productivity is achieved through maximum rapid traverse or minimum creep distance of the press.

Operating the machine

The machine is operated via an industrial computer. The control system

enables three working modes.

- Manual

The lifting ram only moves when the foot pedal is depressed.

- Semi-automatic

A complete bend is processed after the foot pedal is released.

- automatic

A complete bending programme is executed after the foot pedal is released.


The control system

Boschert uses the Cybelec DNC 60 alphanumeric control as standard.

As an option, Boschert uses, among other things, the Cybelec

Modeva PAC or the RA 3D, both with 15" touchscreen.

These controls have been specially developed for sheet metal bending applications.

Simple operation

- Intuitive programming with clear, easily recognisable, colour-coded field functions.

- Complete programming of the factory settings via just one programming page.

- Fast machine setting thanks to direct access to setting parameters and basic functions.

basic functions.

- Fast data entry thanks to the ergonomic, slightly inclined keyboard with large

large keys.

- Convenient operation thanks to 15" TFT touch screen

- The important machine elements (pushbuttons, switches) are positioned within easy reach directly 1

placed directly below the keyboard.

Better bending

- The control system has offline 2D software for preparing production programmes on the

programmes on the PC and for checking the possibilities for workpiece

workpiece coloring in the Boro.

- Higher productivity through quick and easy modification of existing products.

- High-precision control thanks to extensive machine parameters.

- Display of error and warning messages on the console screen.

Wide range of functions

- 2D touchscreen control with large 15" screen for display and multiple simulation

multiple simulations. The optimum bending sequences, the tools and the sheet

the sheet position in the tools and collision warnings are displayed,

according to criteria defined by the operator:

o minimum sheet length on the operator side

o minimum bending tension

o maximum accuracy between two defined sides

o simple handling

- Multitasking and file management under Windows XPe

- Management of CE safety cycles

- Simple communication

o Windows networking via Ethernet (RJ45)

o Connection of external devices via USB port for software updates and data backup

data backup

o Telephone service

- Almost unlimited program possibilities and very high sequence numbers.



Find m tesbe argrLehhs://www.ucymachines.com/


Contact us at - sales@ucymachines.com

Specifications

ManufacturerBoschert
ModelG-Bend Plus 4290
Year2020
ConditionUsed
Stock Number959
