2010 Trumpf Truelaser L3030 (L20)

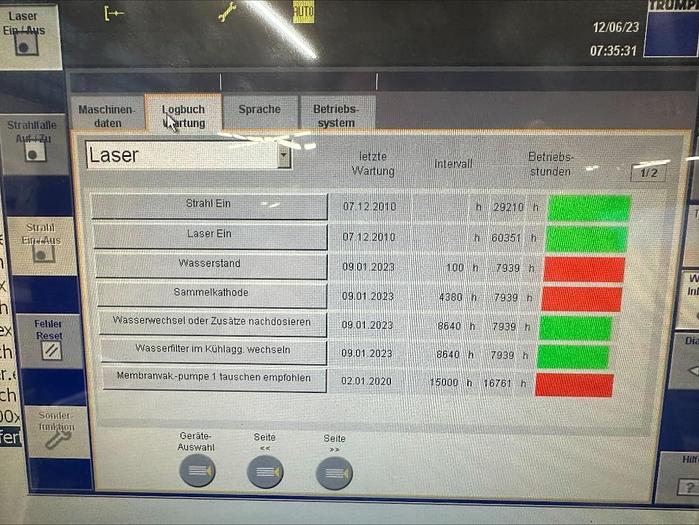

Trumpf laser system L3030 (L20): Hours in picutres

➢

Year of construction 2010

➢

Operating hours laser on: 60351 h

➢

Operating hours laser beam on: 9210 h

➢

Length: 9300mm incl. pallet changer

➢

Width: 3700mm

➢

Height: 2300mm

➢

Weight: approx. 12100kg incl. pallet changer

➢

Total connected load: 105 kVA

➢

Working area 3000x1500mm

➢

Laser TruFlow 5000 Watt with standby function

➢

Max. sheet thicknesses

-

Aluminium 12mm

-

Stainless steel 20mm

-

Steel 25mm

Description:

System is in good condition (used) and fully operational

ready for use, annual maintenance was carried out by the

machine manufacturer (Trumpf).

In addition, some components have been replaced

replaced with original spare parts in recent years:

-

TASC control system

-

Quartz tubes in the resonator incl. optics

-

decoupling monitoring

-

Focus control valve

Dismantling possible from April / May 2024!

Option to buy a 2003 Trumpf Liftmaster LMZ 3050 as well if one wishes to automate the process
