2012 Bystronic ByStar 3015 6kW

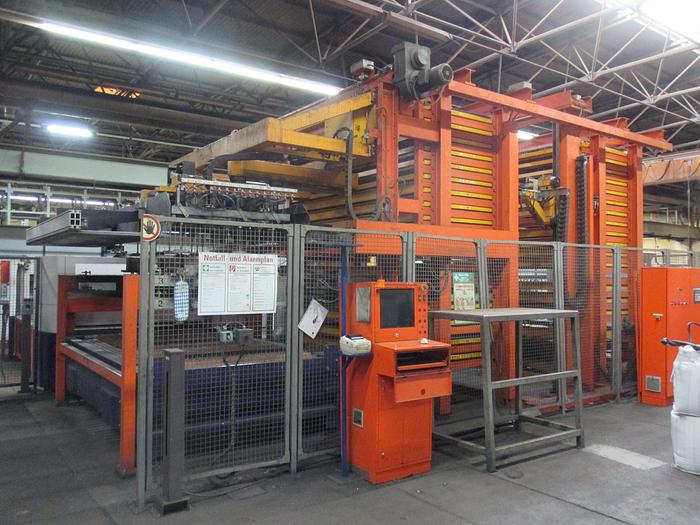

2. Bystronic ByStar 3015, 6KW (year of construction 2012) + automated storage system (year of construction 2001)

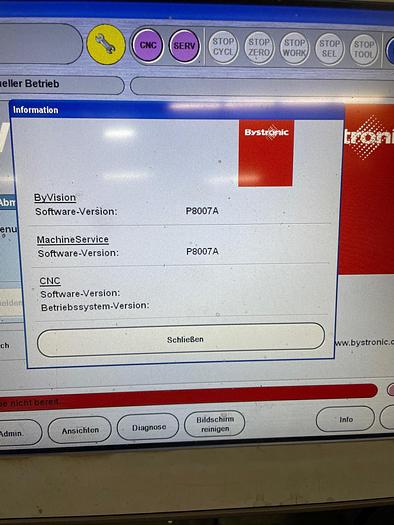

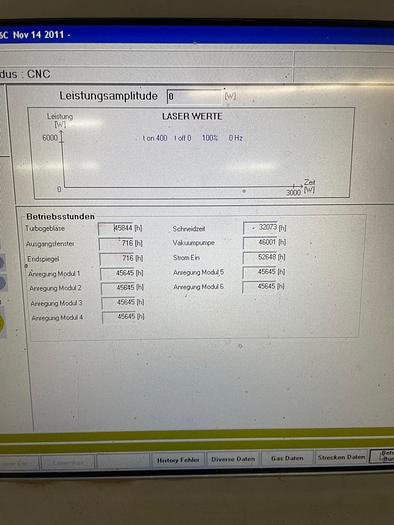

For hours and software, see pictures.

The Bystronic ByStar 3015 is a high-performance fiber laser cutting machine designed for precision cutting of various metal sheets. Here are some details about the machine:

1. Laser power: The Bystronic ByStar 3015 is equipped with a fiber laser source that has a power output of up to 6 kW. This high laser power allows the machine to cut through thick metal sheets quickly and accurately.

2. Cutting capacity: The Bystronic ByStar 3015 can cut metal sheets up to 3 meters in length and 1.5 meters in width. The machine can also cut a variety of materials, including stainless steel, aluminum, and copper.

3. Cutting speed: The machine is designed to achieve high cutting speeds of up to 50 meters per minute. The high speed allows for faster cutting times, which can increase productivity and efficiency.

4. Control system: The Bystronic ByStar 3015 is equipped with a user-friendly control system that allows for easy operation of the machine. The system also includes advanced features such as automatic nesting, which optimizes material usage and reduces waste.

5. Safety features: The machine is designed with safety in mind and includes a range of safety features such as protective covers, light curtains, and emergency stop buttons. These features ensure the safety of the operator and other personnel working in the vicinity of the machine.

6. Maintenance: The Bystronic ByStar 3015 requires regular maintenance to ensure optimal performance. The machine includes features such as automatic nozzle cleaning, which reduces downtime and extends the life of the machine.

Overall, the Bystronic ByStar 3015 is a reliable and efficient fiber laser cutting machine that offers high precision, speed, and flexibility. Its advanced features and user-friendly control system make it an excellent choice for metal cutting applications in various industries.

Specifications

1. Laser source:

- Type: Fiber laser

- Power output: Up to 6 kW

- Wavelength: 1070 nm

2. Cutting capacity:

- Maximum sheet size: 3000 mm x 1500 mm

- Maximum material thickness:

 - Mild steel: 25 mm

 - Stainless steel: 20 mm

 - Aluminum: 15 mm

 - Copper: 10 mm

3. Cutting speed:

- Maximum positioning speed: 169 m/min

- Maximum cutting speed: 50 m/min

- Acceleration: 2.5 G

4. Control system:

- CNC controller: ByVision Cutting

- Operating system: Windows-based

- User interface: Touchscreen

- Automatic nesting: Yes

5. Accuracy:

- Positioning accuracy: ±0.05 mm/m

- Repeatability: ±0.03 mm

6. Power supply:

- Voltage: 400 VAC ±10%

- Frequency: 50/60 Hz

- Power consumption: 24 kVA

7. Dimensions and weight:

- Machine dimensions (L x W x H): 10500 mm x 5300 mm x 2200 mm

- Machine weight: 18,000 kg

8. Safety features:

- Protective covers

- Light curtains

- Emergency stop buttons

9. Maintenance:

- Automatic nozzle cleaning

- Automatic lubrication system

Overall, the Bystronic ByStar 3015 is a highly capable fiber laser cutting machine that offers fast, precise, and reliable cutting of various metal materials. Its advanced features, such as automatic nesting and nozzle cleaning, make it a highly productive machine, while its safety features ensure the safety of the operator and others working in the vicinity.
