2005 STRPACK 6-Head Filling and Capping Line (Piston Filling)

6-Head Filling and Capping Line (Piston Filling)

never been in operation except for the labeler for approx. 3 months

Product: Various viscious liquid product

Filling Range:100-5000ml

Capacity: 1500-2000 pcs/Hour(1L)

6 rows of fillers, piston volume 2.5L

Closers for jugs

Capper for small bottles

Labeler

Unloading station

Control cabinet in EX version

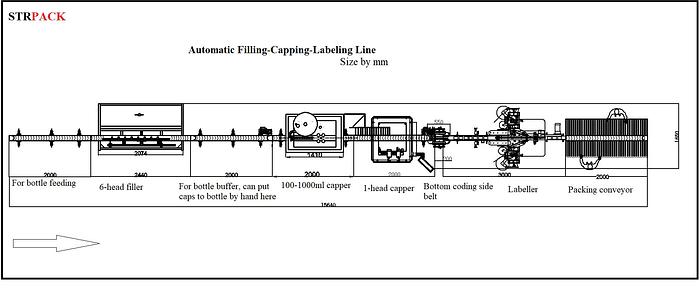

Line details:

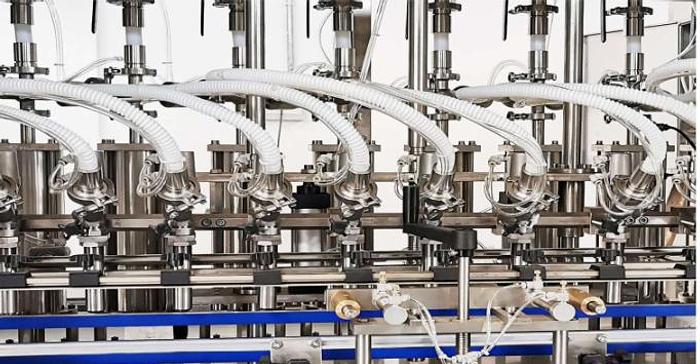

1.STRFS-6 Automatic 6 -head piston filling machine

-for filling 100-5000ml

-Servo driven dosing system

-304 stainless steel product contact parts

-Include 2 meters conveyor

1.1 316 stainless steel product contact parts

1.2 Diving filling system

1.3 12mm Filling nozzle

1.4 Explosion-proof Electrical Box

2.STRXG-4M Automatic 4 -roller Capping Machine

-for 100-1000ml screw caps

-without cap feeding system

-with 2000mm conveyor

2.1 Explosion-proof Electrical Box

3. STR -FX1A Automatic Single-head Capping Machine

-with cap sorting bowl for automatic cap sorting and feeding

-include 2 meters conveyor

4. STL-200 Automatic front and back Side labeling

-machine for square/flat bottle

-for non-transparent self-adhesive label

-with 2800mm conveyor

4.1 Labeling device for round bottles

4.2 Sensors for transparent label

4.3 Explosion-proof Electrical Box + Explosion-proof conveyor motor

5. 600mm side belt for bottle bottom coding

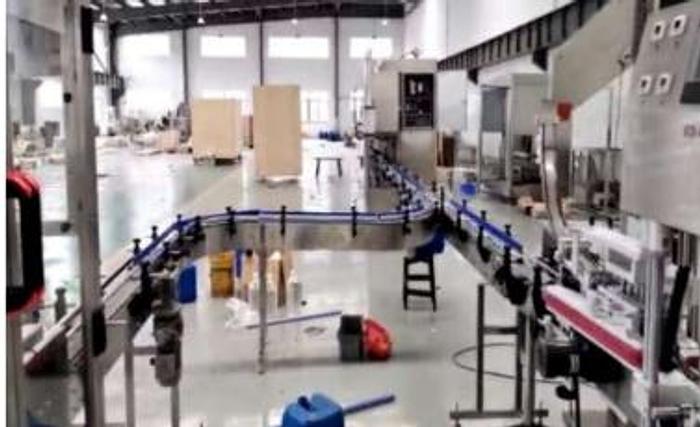

6. Extra conveyor for connecting the line

2M before filling, 1M between filling and capping, 1M after capping

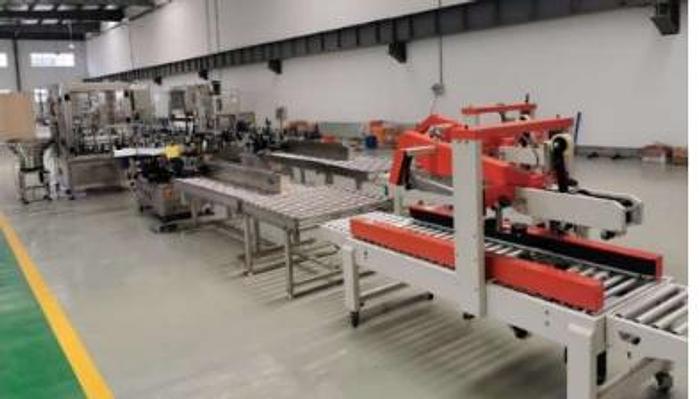

7. 2000MM Packing Conveyor with side roller table

Optional, It is used to put bottles into carton by hand
